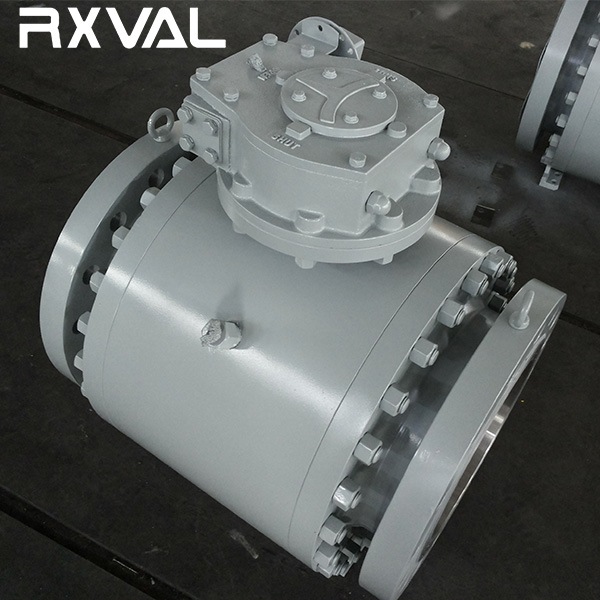

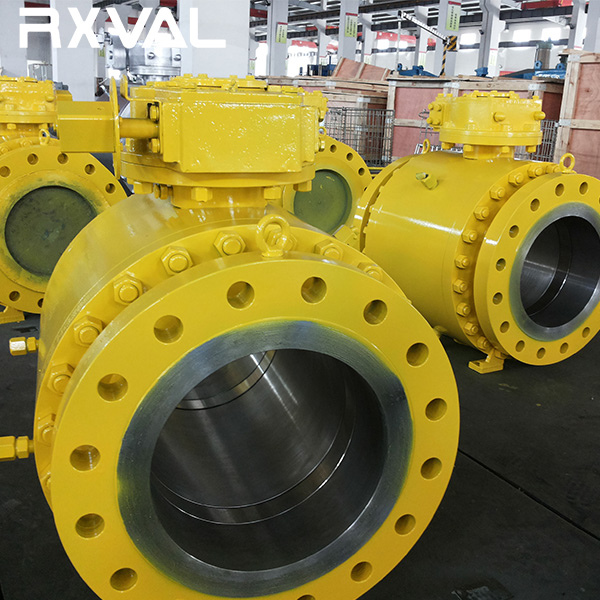

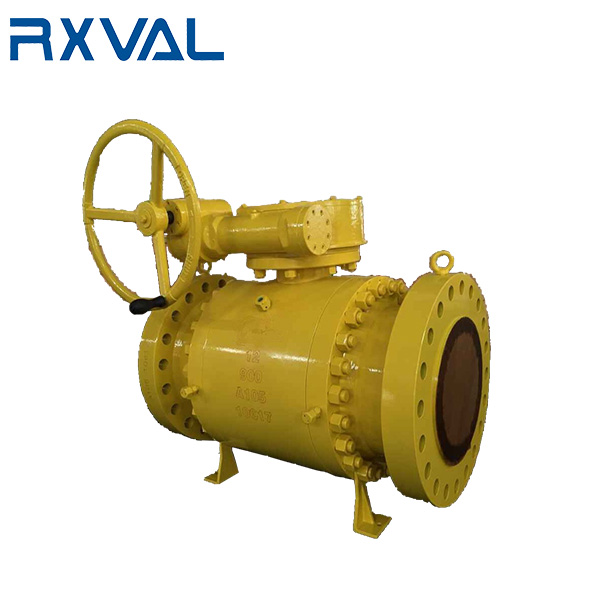

3-Piece Trunnion Mounted Ball Valve
Features
●Two Piece or Three Piece
●Full or Reduce Bore
●Trunnion Mounted Ball,Solid Ball
●Fire Safety Seat Sealing
●Anti-Static Spring Device
●Blow-out proof stem
●Low Emission
●Double Block and Bleed
Advantages
1.Forged Body with
2.Pressure relief valve to avoid cavity over pressure when applicable
3.Emergency built-in stem and seat sealant injection system
4.DBB design enables the use of a single valve with two independently functioning seats on each end of the valve while allowing the cavity between the seating surfaces to be vented or bled.
Dimension and Weight
CLASS 150/300 ONLY, OTHER PRESSURE RATING PLEASE CONTACT US.
|
CLASS 150 |
|||||||||||||||
| DN | mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 |
| NPS | in | 2 | 21/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 |
| L(RF) | mm | 178 | 191 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1245 |
| in | 7 | 7.5 | 8 | 9 | 15.5 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 42 | 49 | |
| L1(BW) | mm | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 914 | 991 | 1143 | 1346 |
| in | 8.5 | 9.5 | 11.13 | 12 | 18 | 20.5 | 22 | 25 | 30 | 33 | 36 | 39 | 45.5 | 53 | |
| L2(RTJ) | mm | 191 | 203 | 216 | 241 | 406 | 470 | 546 | 622 | 699 | 775 | 876 | 927 | 1080 | |
| in | 7.5 | 8 | 8.5 | 9.5 | 16 | 18.5 | 21.5 | 24.5 | 27.5 | 30.5 | 34.5 | 36.5 | 42.5 | ||
| H | mm | 153 | 165 | 195 | 213 | 272 | 342 | 495 | 580 | 625 | 720 | 790 | 840 | 1050 | 1150 |
| in | 6.05 | 6.5 | 7.68 | 8.39 | 10.7 | 13.5 | 19.5 | 22.85 | 24.6 | 28.35 | 31 | 33.1 | 41.34 | 45.3 | |
| Do(W) | mm | 400 | 400 | 600 | 850 | 1100 | 1500 | *350 | *350 | *600 | *600 | *800 | *800 | *800 | *800 |
| in | 15.74 | 15.74 | 23.62 | 33.46 | 43.3 | 59 | 13.8 | 13.8 | 23.6 | 23.6 | 31.5 | 31.5 | 31.5 | 31.5 | |
| RF(Kg) | 15 | 19 | 38 | 65 | 97 | 160 | 240 | 390 | 510 | 750 | 895 | 1190 | 2100 | 3000 | |
| Bw(Kg) | 13 | 17 | 35 | 55 | 92.8 | 154 | 227 | 365 | 478 | 711 | 868 | 1138 | 2015 | 2900 | |
|
CLASS 300 |
|||||||||||||||
| DN | mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 |
| NPS | in | 2 | 21/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 |
| L(RF) | mm | 216 | 241 | 283 | 305 | 403 | 502 | 568 | 648 | 762 | 838 | 914 | 991 | 1143 | 1346 |
| in | 8.5 | 9.5 | 11.13 | 12 | 15.88 | 19.75 | 22.38 | 25.5 | 30 | 33 | 36 | 39 | 45 | 53 | |
| L1(BW) | mm | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 914 | 991 | 1143 | 1346 |
| in | 8.5 | 9.5 | 11.13 | 12 | 18 | 20.5 | 22 | 25 | 30 | 33 | 36 | 39 | 45 | 53 | |
| L2(RTJ) | mm | 232 | 257 | 298 | 321 | 419 | 518 | 584 | 664 | 778 | 854 | 930 | 1010 | 1165 | 1372 |
| in | 9.13 | 10.13 | 11.75 | 12.63 | 16.5 | 20.38 | 23 | 26.13 | 30.63 | 33.63 | 36.63 | 39.75 | 45.89 | 54 | |
| H | mm | 153 | 165 | 195 | 213 | 272 | 342 | 495 | 580 | 625 | 720 | 790 | 840 | 1050 | 1150 |
| in | 6.02 | 6.5 | 7.68 | 8.39 | 10.7 | 13.5 | 19.5 | 22.85 | 24.6 | 28.35 | 31 | 33.1 | 41.34 | 45.3 | |
| Do(W) | mm | 400 | 400 | 600 | 850 | 11000 | 1500 | *350 | *350 | *600 | *600 | *800 | *800 | *800 | *800 |
| in | 15.74 | 15.74 | 23.62 | 33.46 | 43.3 | 59 | 13.8 | 13.8 | 23.6 | 23.6 | 31.5 | 31.5 | 31.5 | 31.5 | |
| RF(Kg) | 18 | 27 | 47 | 80 | 118 | 200 | 365 | 530 | 740 | 1030 | 1320 | 1540 | 2600 | 3900 | |
| Bw(Kg) | 14 | 22 | 38 | 65 | 105 | 185 | 342 | 503 | 713 | 1000 | 1285 | 1498 | 2540 | 3825 | |
Inspection
Inspection procedure for 3-Piece Trunnion Mounted Ball Valve
●Chemical Analysis
1. Manual Methods 2.PMI
●Mechanical performance
1. Tensile Strength 2.Yield Strength 3. Charpy impact Test
●Valve thickness test
Ultrasonic Thickness Gauge
●Dimension and Roughness Test
Caliper/Digital Caliper/Thread Gauge etc
●Hardness Test
Hardness Guage
●Welding Procedure Qualification
●NDT Test (MT,PT,UT,RT)
●Torque Test
●Pressure Test
●Painting Inspection
●Final Inspection (Nameplate,Visual appearance...)
Other Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for 3-Piece Trunnion Mounted Ball Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for 3-Piece Trunnion Mounted Ball Valve |
| MOQ | 1 Pc for 3-Piece Trunnion Mounted Ball Valve |
| Nameplate | According to customer for 3-Piece Trunnion Mounted Ball Valve |
| Color | According to customer for 3-Piece Trunnion Mounted Ball Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
For almost 10 years, RXVAL has continually committed itself to offer the best 3-Piece Trunnion Mounted Ball Valve products to meet a wide range of applications and requirements.
As an valve manufacturer, RXVAL has your perfect 3-Piece Trunnion Mounted Ball Valve solution. Our success in the valves industry is attributed to our customer-centric team of sales personnel, engineers, workers and after-service staff that are collectively committed to providing quality products at a price you would come to expect.
