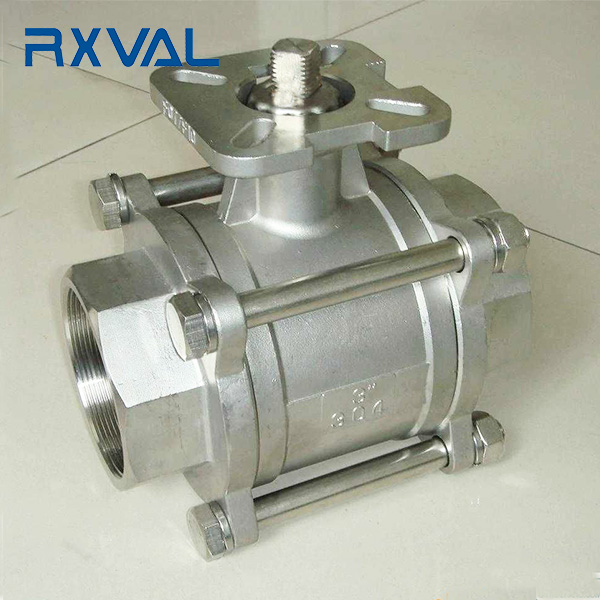

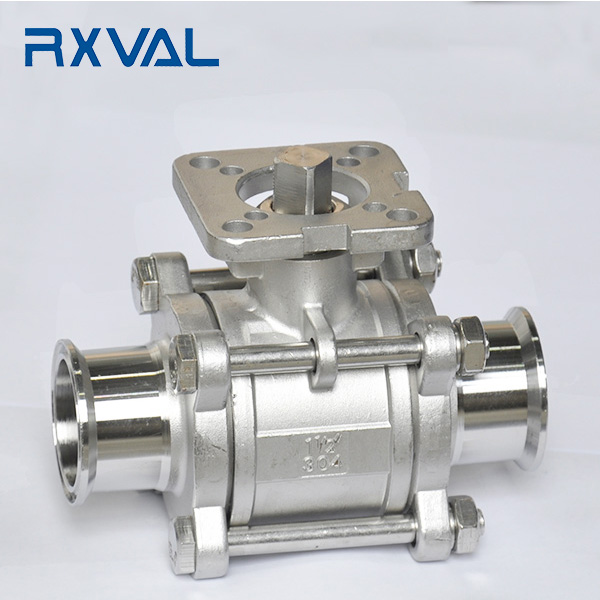

3-PC ISO 5211 Mountain Pad Ball Valve 1000 WOG
Features
● Blow-out proof stem
● 100% leakage tested
● Floating Ball,Hollow Or Solid Ball
● Anti-Static Spring Device
● Mounting Pad Available
● ISO-5211 mounting pad for actuator (option)
● Locking device (option)
● Application:Water, Steam, Oil,Gas
Standard Material Specification
| No. | PART NAME | MATERIAL |
| 1 | BODY | CF8/CF8M/WCB |
| 2 | BALL | SS304/SS316 |
| 3 | CAP | CF8/CF8M/WCB |
| 4 | BOLT | SS304 |
| 5 | SEAT | PTFE/RPTFE/PPL |
| 6 | PACKING | PTFE |
| 7 | PACKING | PTFE |
| 8 | GLAND NUT | SS304 |
| 9 | HANDLE | SS201/SS304 |
| 10 | SPRING WASHER | SS304 |
| 11 | BOLT NUTS | SS304 |
| 12 | STEM | SS304/SS316 |
| 13 | SPRING WASHER | SS304 |
| 14 | NUT | SS304 |
Dimensions and Weights (Unit:mm)
|
SIZE |
DN(mm) |
d |
d1 |
d2 |
S |
D |
D1 |
L |
H |
W |
|
1/4” |
8 |
10.5 |
11.6 |
11.6 |
14.3 |
22.6 |
17 |
50 |
55 |
98 |
|
3/8” |
10 |
12 |
12.7 |
12.7 |
17.8 |
22.6 |
17 |
60 |
55 |
98 |
|
1/2” |
15 |
15 |
15 |
16 |
22.2 |
27.3 |
21.3 |
70 |
56 |
100 |
|
3/4” |
20 |
20 |
20 |
20 |
27.7 |
33.1 |
26.7 |
80 |
62 |
115 |
|
1” |
25 |
25 |
25 |
25 |
34.5 |
39.8 |
33.6 |
88 |
77 |
125 |
|
1-1/4” |
32 |
32 |
32 |
33.8 |
43.2 |
48.6 |
42.4 |
100 |
82 |
140 |
|
1-1/2” |
40 |
38 |
38 |
39.5 |
49.1 |
55.1 |
48 |
110 |
95 |
160 |
|
2” |
50 |
50 |
50 |
50.8 |
61.1 |
68.1 |
60.5 |
135 |
100 |
165 |
|
2-1/2” |
65 |
65 |
65 |
62.7 |
77.1 |
85.9 |
76.1 |
180 |
120 |
215 |
|
3” |
80 |
80 |
80 |
77.9 |
90.0 |
100.8 |
88.9 |
190 |
125 |
220 |
|
4” |
100 |
100 |
100 |
100 |
115.5 |
127.5 |
114.2 |
235 |
150 |
250 |
Advantage
1.Made of investment casting for the body of 3-PC ISO 5211 Pad Ball Valve
2.Factory supplied with competitive price
3.All the test reports offered before shipment for approved
4.100% testing before shipment and ensure 0 leakage for 3-PC ISO 5211 Pad Ball Valve
Technical Drawing for 2000PSI 3PC Ball Valve
Other Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 3 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for 3-PC ISO 5211 Pad Ball Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for 3-PC ISO 5211 Pad Ball Valve |
| MOQ | 10 Pc for 2-PC Stainless Steel Ball Valve |
| Nameplate | According to customer for 3-PC ISO 5211 Pad Ball Valve |
| Logo | According to customer for 3-PC ISO 5211 Pad Ball Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
Tips
Customers have special requirements for products and must provide the following instructions in the order contract:
1.Color of Lever Plastic
2.Confirmed drawing with sign and stamp
3.Service medium, temperature and pressure range
4.Inspection standards and other requirements such as 3rd party inspection .
5.Tell requirement for the logo cast on the valve .
6.Tell requirement about the logo on the Lever. Or label sample.
7.Tell If have special requirement for package .
