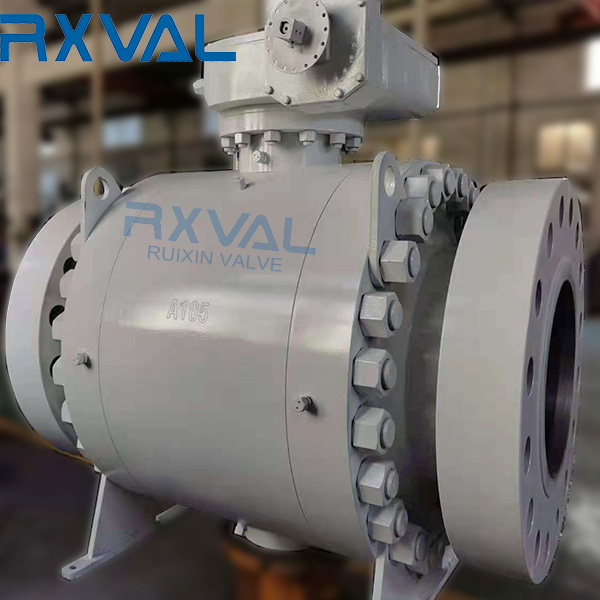

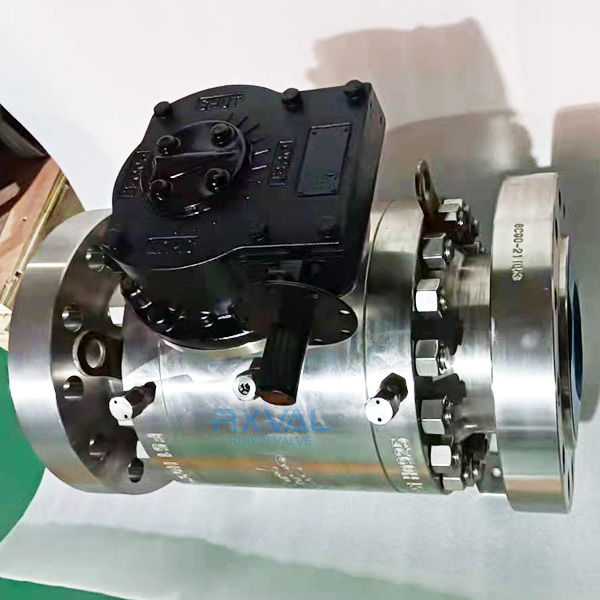

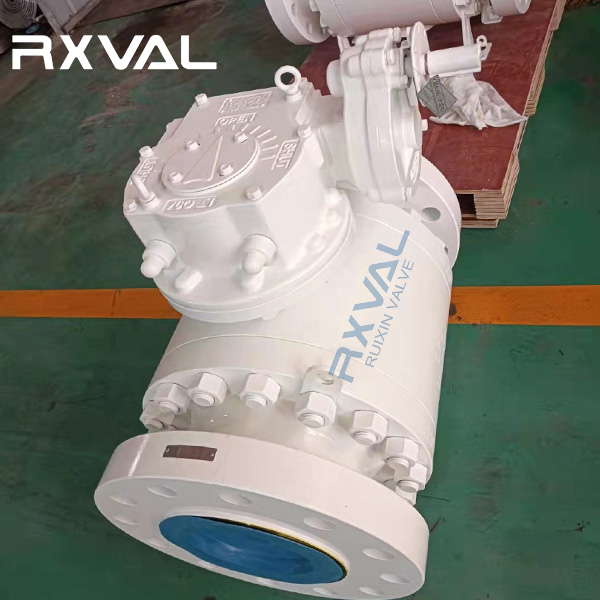

API 6D Trunnion Mounted Ball Valve
Features
●Two Piece or Three Piece bolted Body and Cap
●Full or Reduce Bore
●High Performance Sealing Mechanism
●Fire Safety Design
●Anti-Static Spring Device
●Blow-out proof stem
●Low Emission Design
●Double Block and Bleed function
●Locking Device for Lever Operation
●Low Operation Torque
●Self-relief of Excessive Cavity Pressure
●Packing with live loaded sealing mechanism
Material Specification
| No. | Name | Material | No. | Name | Material |
| 1 | Body | A105/F304/LF2 | 18 | Cap | A105/F304/LF2 |
| 2 | Gasket | Graphite+SS | 19 | Grease Valve | A105/F304/LF2 |
| 3 | Drain valve | A105/F304/LF2 | 20 | Bushing | PTFE+CS/PTFE+SS |
| 4 | Bottom Cover | A105/F304/LF2 | 21 | Stem | A182 F6a/F304 |
| 5 | Bolt | A193 B7/B8/L7 | 22 | Bushing | PTFE+CS/PTFE+SS |
| 6 | Gasket | Graphite+SS | 23 | Yoke | A216 WCB |
| 7 | O-Ring | Viton | 24 | Sleeve | ANSI 1025 |
| 8 | Bushing | PTFE+SS | 25 | Bolt | A193 B7 |
| 9 | Ball | A105+ENP/F304 | 26 | O-Ring | Viton |
| 10 | Gasket | Graphite+SS | 27 | O-Ring | Viton |
| 11 | O-Ring | Viton | 28 | Gasket | Graphite+SS |
| 12 | Fire Ring | Graphite | 29 | Bonnet | A105/F304/LF2 |
| 13 | Seat Sealing | PTFE,PEEK,NYLON | 30 | Pin | A182 F6a |
| 14 | Seat | A105+ENP/F304 | 31 | Bolt | A193 B7 |
| 15 | Spring | Inconel 600 | 32 | Gear | / |
| 16 | Bolt | A193 B7/B8/L7 | 33 | Grease Valve | A105/F304/LF2 |
| 17 | Nut | A194 2H/8/7 |
Advantages
1.Forged Body
2.Pressure relief valve to avoid cavity over pressure when applicable
3.Emergency built-in stem and seat sealant injection system
4.DBB design enables the use of a single valve with two independently functioning seats on each end of the valve while allowing the cavity between the seating surfaces to be vented or bled.
other Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for API 6D Trunnion Mounted Ball Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for API 6D Trunnion Mounted Ball Valve |
| MOQ | 1 Pc for API 6D Trunnion Mounted Ball Valve |
| Nameplate | According to customer for API 6D Trunnion Mounted Ball Valve |
| Color | According to customer for API 6D Trunnion Mounted Ball Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
Tips
Customers have special requirements for products and must provide the following instructions in the order contract:
1.Painting Color
2.Confirmed drawing with sign and stamp
3.Service medium, temperature and pressure range
4.Inspection standards and other requirements such as 3rd party inspection .
5.Tell requirement for the logo cast on the valve .
6.Tell requirement about the logo on the Lever. Or label sample.
7.Tell If have special requirement for package .
