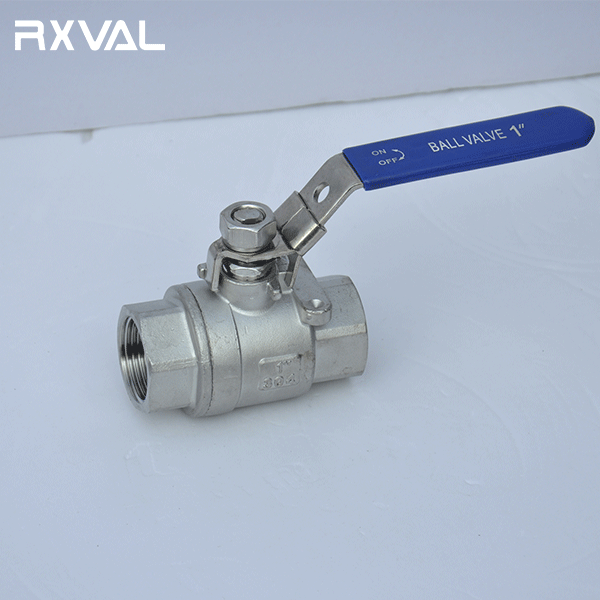

2-PC Stainless Steel Threaded Ball Valve2000 PSI(WOG)

Short Description:

Size 1/4 “ - 4 ”
Pressure 2000 PSI
End Connection NPT, BSP, BSPT
Bore Reduce Bore or Full Bore
Body Material CF8M (SS316), CF8 (SS304),WCB
Ball Material CF8M (SS316), CF8 (SS304),F304,F316
Seat Material PTFE, RPTFE, PEEK,NYLON,PPL
Design ASME B16.34
Face to Face Manufacturer Standard
End Connection ANSI B1.20.1
Checking & Test API 598
Pressure-Temperature ASME B16.34
Operation By Lever ,By Electrical Actuator ,By Pneumatic Actuator
Temperature -20℃ – 200℃ (Depend on Seat Material)

Product Detail

Product Tags

Features

●Strengthened construction secures 2000psi working pressure rating.
●Blow-out proof stem
●Adjustable packing gland.
●100% leakage tested
●Floating Ball,Hollow Or Solid Ball
●Anti-Static Spring Device
●Mounting Pad Available
●ISO-5211 mounting pad for actuator (option)
●Female, Male , Female-Male
●Locking device (option)

Standard Material Specification

sca (1)
No. PART NAME MATERIAL
1 BODY CF8/CF8M/WCB
2 CAP CF8/CF8M/WCB
3 SEAT PTFE/RPTFE/PPL
4 GASKET PTFE
5 THRUST WASHER PTFE
6 PACKING PTFE
7 GLAND NUT SS304
8 SPRING WASHER SS304
9 NUT SS304
10 STEM SS304/SS316
11 SEAT PTFE/RPTFE/PPL
12 BALL SS304/SS316
13 HANDLE SS201/SS304
14 LOCK DEVICE SS201/SS304

Dimensions and Weights

SIZE

G

D

L

H

W

1/4”

8

10.5

55

50

100

3/8”

10

12.5

55

50

100

1/2”

15

15

65

57

125

3/4”

20

20

73

64

125

1”

25

25

86

75

165

1-1/4”

32

32

100

82

165

1-1/2”

40

38

115

98

200

2”

50

49

134

109

200

Temperature - Pressure Rating

sca (2)

Advantage

1.Made of investment casting for the body of 3-PC ISO 5211 Pad Ball Valve
2.Factory supplied with competitive price
3.All the test reports offered before shipment for approved
4.100% testing before shipment and ensure 0 leakage for 3-PC ISO 5211 Pad Ball Valve

Other Information

Payment Term L/C, T/T, Western Union,Paypal
Delivery Time 3 - 30 days after payment
Seaport Shanghai Or Ningbo China
The 3rd Inspection Available
Sample Available for 2-PC Stainless Steel Ball Valve 2000WOG
Warranty Period 18 months after shipments and 12 months after installed
Valve Test 100% quantity tested before delivery
Packing Plywood Case for 2-PC Stainless Steel Ball Valve 2000WOG
MOQ 10 Pc for 2-PC Stainless Steel Ball Valve 2000WOG
Nameplate According to customer for 2-PC Stainless Steel Ball Valve 2000WOG
Logo According to customer for 2-PC Stainless Steel Ball Valve 2000WOG
Shipment By sea,By Air ,By Express,and door to door available
OEM/ODM Service Available
