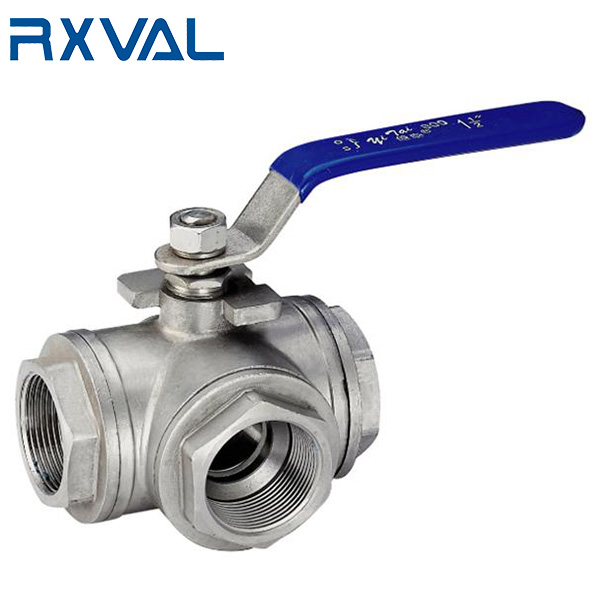

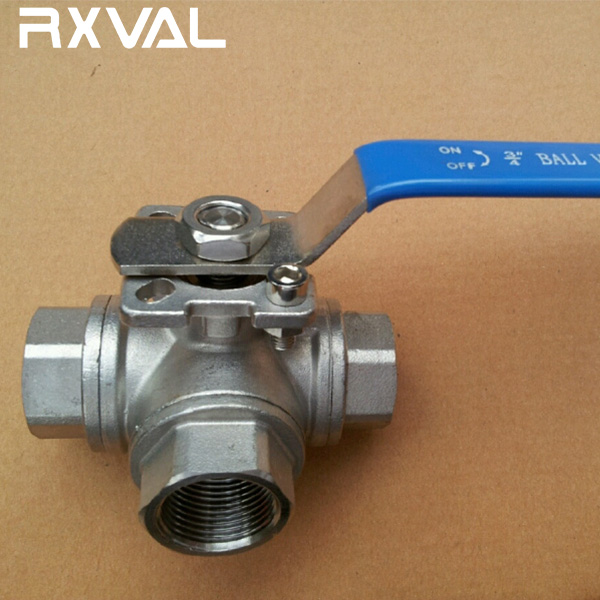

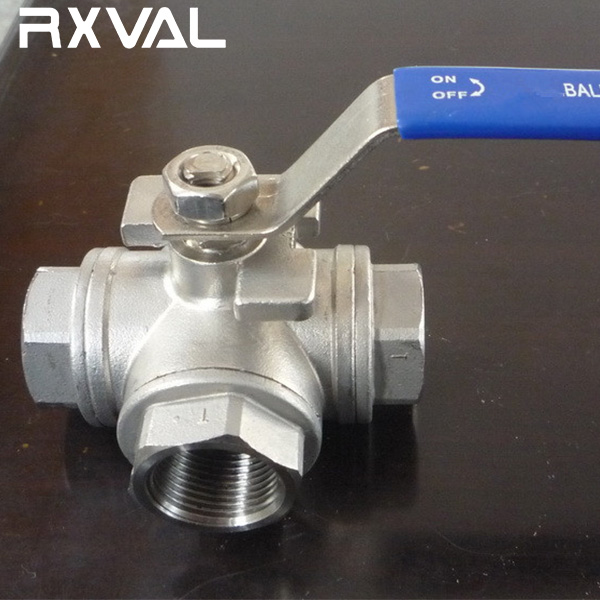

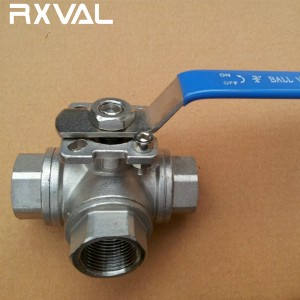

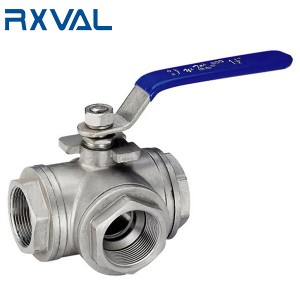

Three-Way Ball Valve with “L” or “T” Type
Features
● Blow-out proof stem
● “L” or “T” type for choose
● 100% leakage tested
● Floating Ball,Hollow Or Solid Ball
● Anti-Static Spring Device
● Mounting Pad Available
● ISO-5211 Top mounting pad for actuator (option)
● Lockable device (option)
● Positive Position Location at 90° Increments

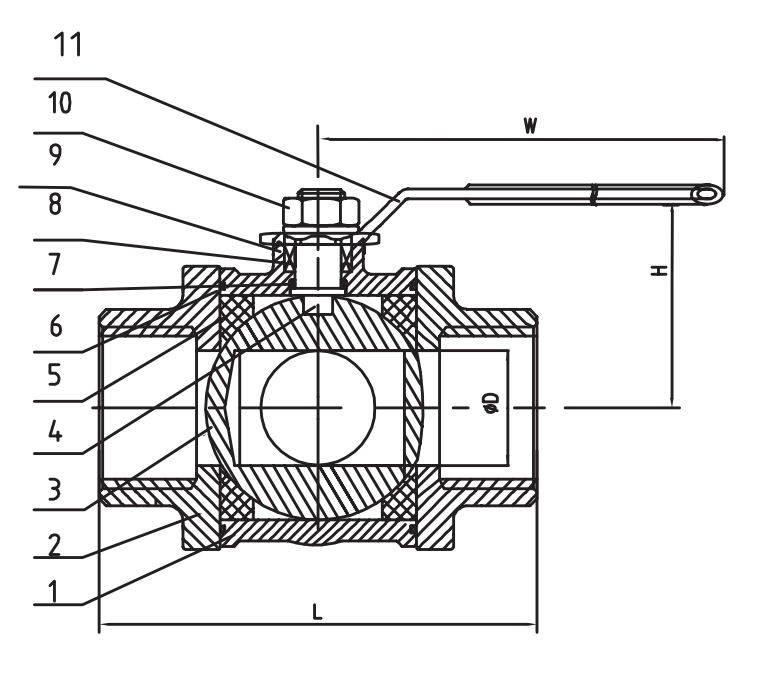

Standard Material Specification
| No. | PART NAME | MATERIAL |
| 1 | BODY | CF8/CF8M/WCB |
| 2 | CAP | CF8/CF8M/WCB |
| 3 | BALL | SS304/SS316 |
| 4 | STEM | SS304/SS316 |
| 5 | SEAT | PTFE/RPTFE/PPL |
| 6 | SEAL RING | PTFE |
| 7 | STEM SEAL | PTFE |
| 8 | PACKING | PTFE |
| 9 | GLAND NUT | SS304 |
| 10 | NUT | SS304 |
| 11 | HANDLE | SS201/SS304 |
Dimensions and Weights (Unit:mm)
|
SIZE |
d |
L |
H |
W |
|
1/2” |
15 |
70 |
56.5 |
95 |
|
3/4” |
20 |
78 |
63.5 |
122 |
|
1” |
25 |
86 |
68 |
143 |
|
1-1/4” |
32 |
110 |
73.5 |
158 |
|
1-1/2” |
40 |
130 |
82 |
179 |
|
2” |
50 |
145 |
93.5 |
180 |
Advantages
1.Made of investment casting for the body of 3-Way Ball Valve
2.The 3-way ball valve is a robust and reliable performer built to last.
3.Stainless steel performs well at a range of temperatures depending on the pressure and can be adapted to fit various configurations.
4. 3-way ball valves can be used in smart ways to save space and pipe cost by rotating the T-port or L-port balls to a 3D flow area.
5.The 3-way valves can be easily used in diverting or mixing the media for different purpose.
6.3-way ball valves expand the usage of piping works.
Other Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 3 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for Three-Way Ball Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Three-Way Ball Valve |
| MOQ | 10 Pc for Three-Way Ball Valve |
| Nameplate | According to customer for Three-Way Ball Valve |
| Logo | According to customer for Three-Way Ball Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
Tips
Customers have special requirements for products and must provide the following instructions in the order contract:
1.Color of Lever Plastic
2.Confirmed drawing with sign and stamp
3.Service medium, temperature and pressure range
4.Inspection standards and other requirements such as 3rd party inspection .
5.Tell requirement for the logo cast on the valve .
6.Tell requirement about the logo on the Lever. Or label sample.
7.Tell If have special requirement for package .
