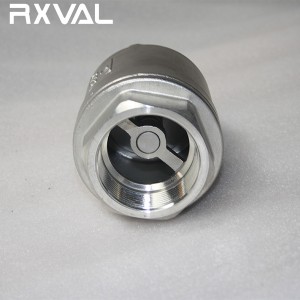

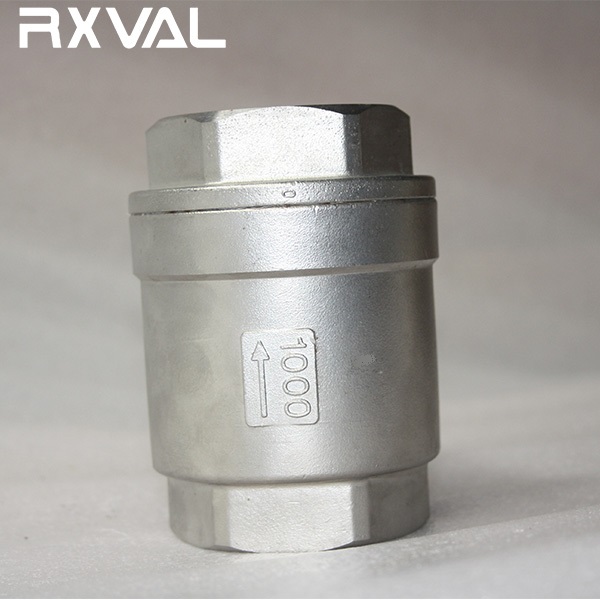

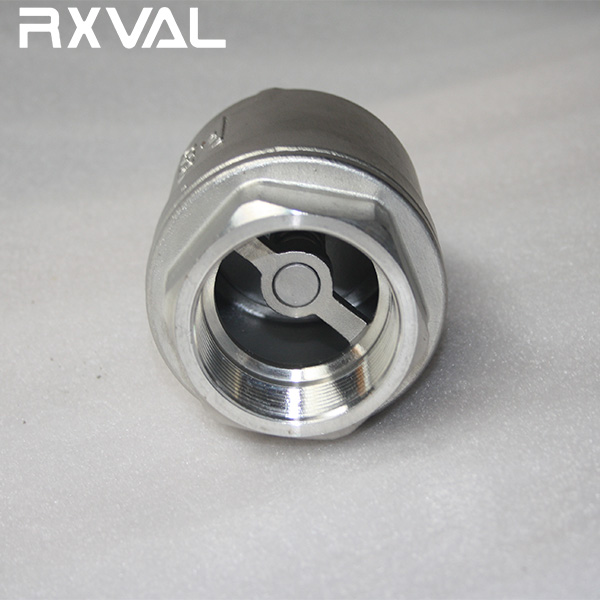

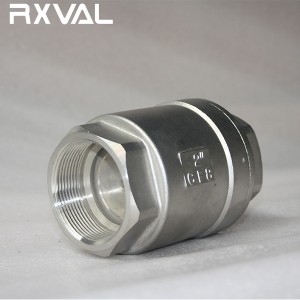

Threaded/Screwed Vertical Check Valves 200 PSI
Features
● Full Bore
● Inside Screw and Screwed Cap
● Replaceable Seat
● Temperature range: -60 to 450 °F
Component and Common Materials
| No. | PART NAME | MATERIAL |
| 1 | BONNET | CF8/CF8M |
| 2 | SEALING PACKING | PTFE |
| 3 | SPRING | SS 304 / SS 316 |
| 4 | DISC | SS 304 / SS 316 |
| 5 | BODY | CF8/CF8M |
Dimensions and Weight
|
SIZE |
DN |
L |
H |
|
1/2” |
15 |
57 |
35 |
|
3/4” |
20 |
66 |
40 |
|
1” |
25 |
78 |
46.5 |
|
1-1/4” |
32 |
87 |
56 |
|
1-1/2” |
40 |
103 |
67 |
|
2” |
50 |
118 |
80.5 |
Advantages
1.Made of investment casting for the body of Vertical Check Valve
2.Factory supplied with competitive price
3.All the test reports offered before shipment for approved
4.100% testing before shipment
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for Vertical Check Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Vertical Check Valve |
| MOQ | 1 Pc for Vertical Check Valve |
| Nameplate | According to customer for Vertical Check Valve |
| Color | According to customer for Vertical Check Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
Tips
Customers have special requirements for products and must provide the following instructions in the order contract:
1.Painting Color
2.Confirmed drawing with sign and stamp
3.Service medium, temperature and pressure range
4.Inspection standards and other requirements such as 3rd party inspection .
5.Tell requirement for the logo cast on the valve .
6.Tell requirement about the logo on the Lever. Or label sample.
7.Tell If have special requirement for package .
For almost 10 years, RXVAL has continually committed itself to offer the best Vertical check Valve products to meet a wide range of applications and requirements.
As an valve manufacturer, RXVAL has your perfect Vertical check Valve solution. Our success in the valves industry is attributed to our customer-centric team of sales personnel, engineers, workers and after-service staff that are collectively committed to providing quality products at a price you would come to expect.
Why Choose Us
RXVAL manufactures the Cast Steel ,Stainless Steel ,Alloy Steel,Duplex Steel and Special Alloy lines of products in a full range of sizes, classes, and materials.
RXVAL’ manufacturing practice is designed to control our foundries and processing facilities to ensure a quality product, on-time, at a competitive price.
RXVAL’ production facilities are certified to the requirements of the ISO 9001:2000 Standard and comply with API, ASTM, and ASME industry standards. All RXVAL’ products are manufactured, inspected, and tested in accordance with the most rigid quality standards as well as any specific customer requirements.
Allow us to show you why RXVAL is “The Reliable Source” for all your valve needs.
• Engineered Solutions
• Complete Alloy Coverage
• Ready to Ship Inventories
• Competitive Factory Lead Times
• Sizes ½” to 48” Classes 150 to 2500
• Industry Approved Products
