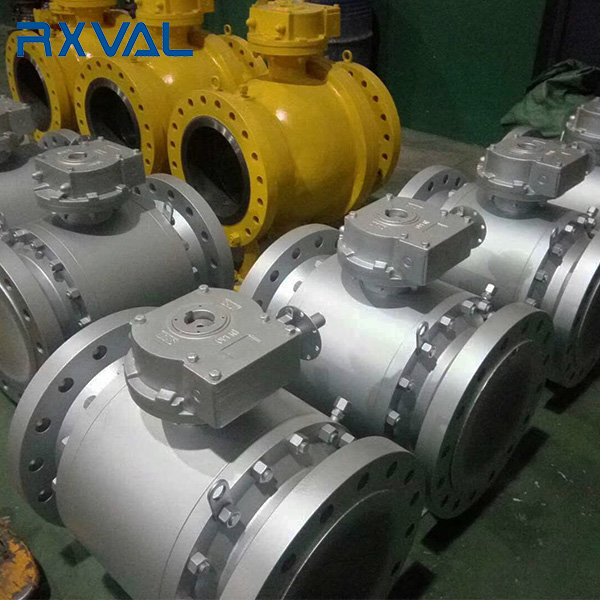

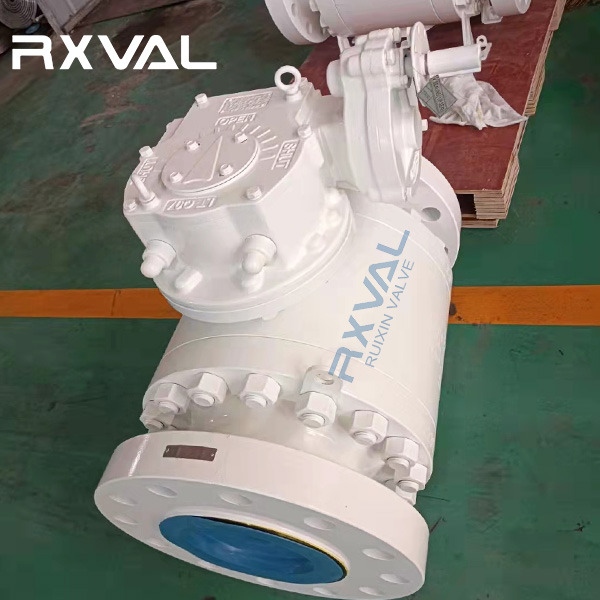

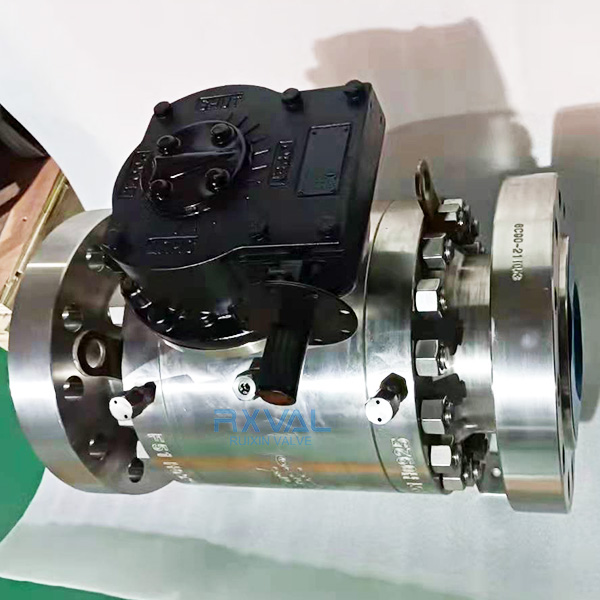

High Pressure Forged Trunnion Mounted Ball Valve
Features
●Three Piece
●Full or Reduce Bore
●High Performance Sealing Mechanism
●Fire Safety Design
●Anti-Static Spring Device
●Blow-out proof stem
●Low Emission Design
●Double Block and Bleed function
●Locking Device for Lever Operation
●Low Operation Torque
●Self-relief of Excessive Cavity Pressure
Material Specification
| No. | Name | Material | No. | Name | Material |
| 1 | Body | A105/F304/LF2 | 18 | Cap | A105/F304/LF2 |
| 2 | Gasket | Graphite+SS | 19 | Grease Valve | A105/F304/LF2 |
| 3 | Drain valve | A105/F304/LF2 | 20 | Bushing | PTFE+CS/PTFE+SS |
| 4 | Bottom Cover | A105/F304/LF2 | 21 | Stem | A182 F6a/F304 |
| 5 | Bolt | A193 B7/B8/L7 | 22 | Bushing | PTFE+CS/PTFE+SS |
| 6 | Gasket | Graphite+SS | 23 | Yoke | A216 WCB |
| 7 | O-Ring | Viton | 24 | Sleeve | ANSI 1025 |
| 8 | Bushing | PTFE+SS | 25 | Bolt | A193 B7 |
| 9 | Ball | A105+ENP/F304 | 26 | O-Ring | Viton |
| 10 | Gasket | Graphite+SS | 27 | O-Ring | Viton |
| 11 | O-Ring | Viton | 28 | Gasket | Graphite+SS |
| 12 | Fire Ring | Graphite | 29 | Bonnet | A105/F304/LF2 |
| 13 | Seat Sealing | PTFE,PEEK,NYLON | 30 | Pin | A182 F6a |
| 14 | Seat | A105+ENP/F304 | 31 | Bolt | A193 B7 |
| 15 | Spring | Inconel 600 | 32 | Gear | / |
| 16 | Bolt | A193 B7/B8/L7 | 33 | Grease Valve | A105/F304/LF2 |
| 17 | Nut | A194 2H/8/7 |
Advantages
1.Forged Body
2.Pressure relief valve to avoid cavity over pressure when applicable
3.Emergency built-in stem and seat sealant injection system
4.DBB design enables the use of a single valve with two independently functioning seats on each end of the valve while allowing the cavity between the seating surfaces to be vented or bled.
5.Open and close quickly
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for High Pressure Forged Trunnion Mounted Ball Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for High Pressure Forged Trunnion Mounted Ball Valve |
| MOQ | 1 Pc for High Pressure Forged Trunnion Mounted Ball Valve |
| Nameplate | According to customer |
| Color | According to customer |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
For almost 10 years, RXVAL has continually committed itself to offer the best High Pressure Forged Trunnion Mounted Ball Valve products to meet a wide range of applications and requirements.
As an valve manufacturer, RXVAL has your perfect High Pressure Forged Trunnion Mounted Ball Valve solution. Our success in the valves industry is attributed to our customer-centric team of sales personnel, engineers, workers and after-service staff that are collectively committed to providing quality products at a price you would come to expect.
