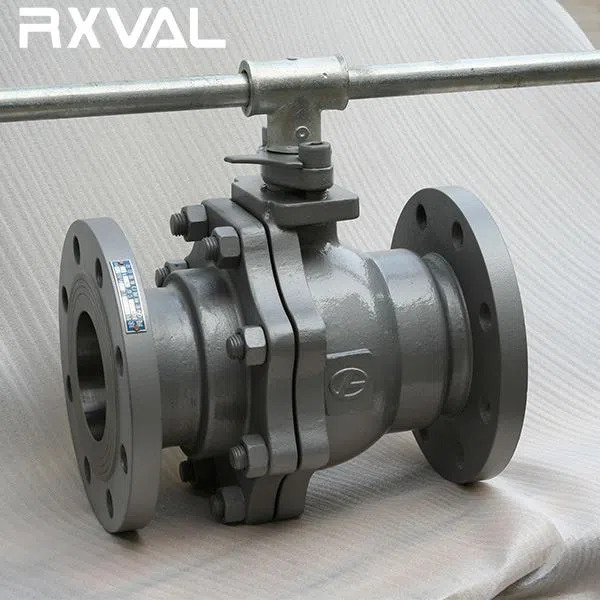

Floating Ball Valve

Short Description:

Size 1/2 “ - 10 ”
Pressure 150LB-600LB
End Connection Flange
Bore Full or Reduce Bore
Body Material A216WCB/A105 ,A351 CF8/F304 ,A351 CF8M/F316 ,ETC
Ball Material A105+ENP,13CR, A351 CF8(A182 F304),A351CF8M(A182 F316) ,ETC
Seat Material PTFE, RPTFE, PEEK,NYLON,PPL Or Metal to Metal
Design API 6D/ ASME B16.34/ BS 5351/ API 608
Face to Face ANSI B16.10
End Flange ANSI B16.5, BW Ends To ANSI B16.25
Fire Safe API 607 Or API6FA
Checking & Test API 598
Pressure-Temperature ASME B16.34
Operation By Lever, By Gear, By Electric or Pneumatic Actuator

Product Detail

Product Tags


● One/ Two/Three Piece
● Floating Ball,Hollow Or Solid Ball
● Fire Safety Seat Sealing
● Anti-Static Spring Device
● Blow-out proof stem
● Low Emission
● Locking device (option)
● ISO-5211 mounting pad for actuator (option)

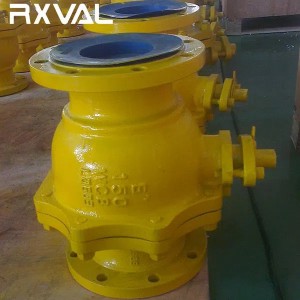

Floating Ball Valve (2)

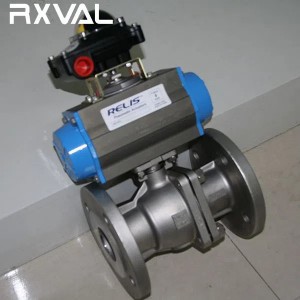

Floating Ball Valve (1)


1. Made of investment casting for the body of floating ball valve
2. Factory supplied with competitive price
3. All the test reports offered before shipment for approved
4. 100% testing before shipment and ensure 0 leakage for floating ball valve

Floating Ball Valve (3)

“On-Off “Position

Floating Ball Valve (4)

With Lock Device

Floating Ball Valve (5)

Blow-out Proof Stem

Floating Ball Valve (6)

Fire Safe Design

Floating Ball Valve (7)

Double Bevel Sealing Ring of Floating Ball Valve

Floating Ball Valve (8)

Automatic pressure relief function

Floating Ball Valve (9)

Full bore or Reduce bore

Other Information

Payment Term L/C, T/T, Western Union,Paypal
Delivery Time 15 - 30 days after payment
Seaport Shanghai Or Ningbo China
The 3rd Inspection Available
Sample Available for Floating ball valve
Warranty Period 18 months after shipments and 12 months after installed
Valve Test 100% quantity tested before delivery
Packing Plywood Case for Floating ball valve
MOQ 1 Pc for Floating ball valve
Nameplate According to customer for Floating ball valve
Color According to customer for Floating ball valve
Shipment By sea,By Air ,By Express,and door to door available
OEM/ODM Service Available
