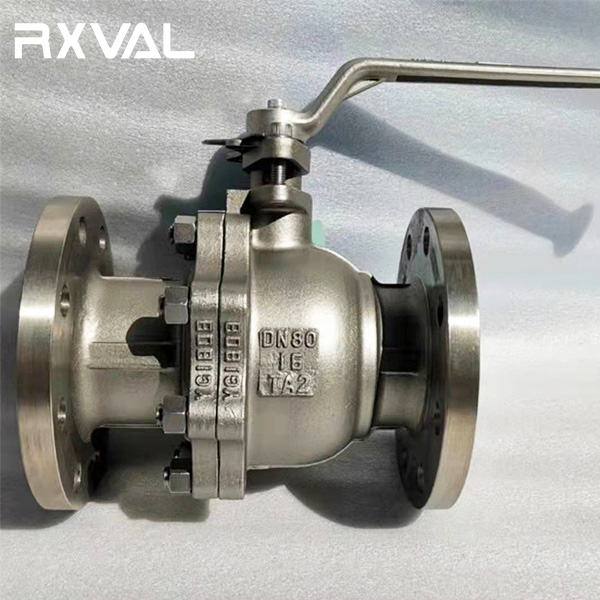

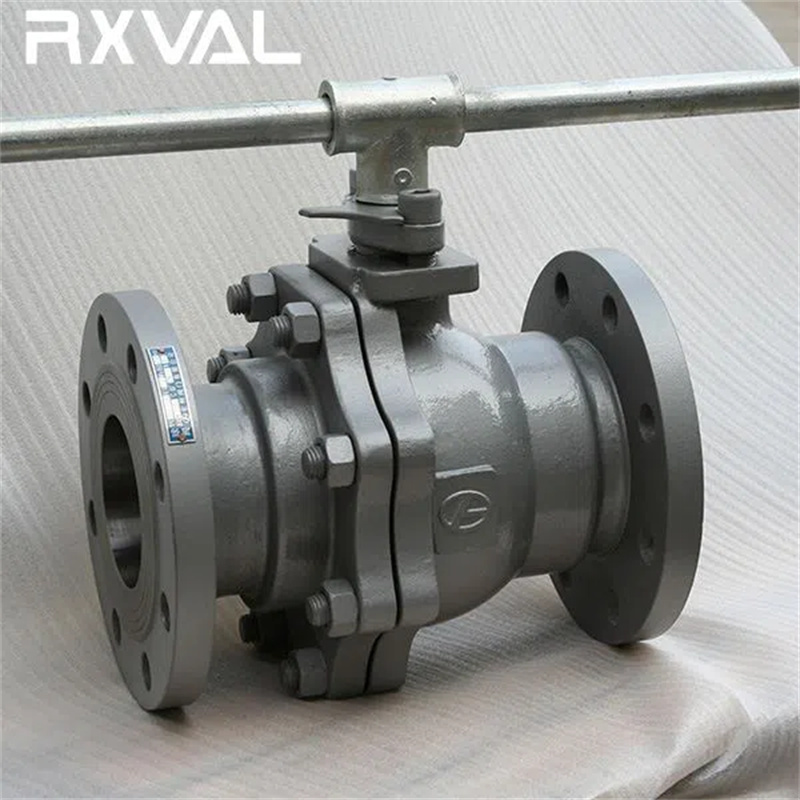

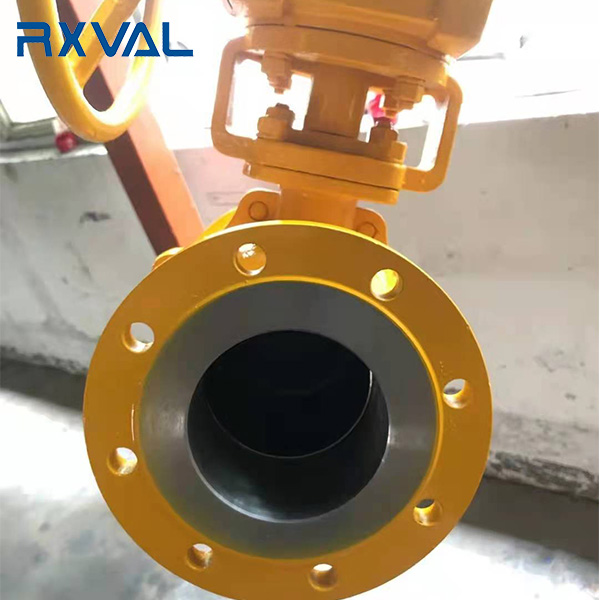

Low Temperature Carbon Steel Ball Valve
Features
●One/ Two/Three Piece
●Floating Ball,Hollow Or Solid Ball
●Fire Safety Seat Sealing
●Anti-Static Spring Device
●Blow-out proof stem
●Low Emission
●Locking device (option)
●ISO-5211 mounting pad for actuator (option)
●Working for low temperature situation
| No. | Parts |
C.S |
S.S |
Low C.S |
| 1 | Body |
A216 WCB |
A351 CF8(M),CF3(M) |
A352 LCB,LCC |
| 2 | Seat |
PTFE.RPTFE |
||
| 3 | Ball |
A105+ENP |
A182 F304(L),F316(L) |
A352 LCB,LCC+ENP |
| 4 | Spring |
INCONEL 750 |
||
| 5 | Bolt |
A193 B7 |
A193 B8,B8M |
A320 L7 |
| 6 | Gasket |
Graphite + S.S |
||
| 7 | Nut |
A194 2H |
A194 B8M |
A194 4 |
| 8 | Bonnet |
A216 WCB |
A351 CF8(M),CF3(M) |
A352 LCB,LCC |
| 9 | Stem |
A182 F6a |
A182 F304(L),F316(L) |
A182 F6a |
| 10 | Bushing |
PTFE+SS |
||
| 11 | Packing Gasket |
A182 F6a |
|
A182 F6a |
| 12 | Packing |
Flexible Graphite, PTFE |
||
| 13 | Gland |
A216 WCB |
A351 CF8(M),CF3(M) |
A 351 CF8M |
| 14 | Bolt |
A193 B7 |
A193 B8,B8M |
A320 L7 |
| 15 | Positioning |
Q235A+Zn(Cr) |
||
| 16 | Retaining Ring |
65 Mn |
||
| 17 | Lever |
A216 WCB |
||
Advantages
1.Made of investment casting for the body of floating ball valve
2.Factory supplied with competitive price
3.All the test reports offered before shipment for approved
4.100% testing before shipment and ensure 0 leakage
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for Floating ball valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Floating ball valve |
| MOQ | 1 Pc for Floating ball valve |
| Nameplate | According to customer for Floating ball valve |
| Color | According to customer for Floating ball valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
For nearly 10 years, RXVAL has committed its efforts in offering simply the best 2-piece low temperature carbon steel ball valve to meet a wide range of project requirements and applications.
We are the valve industry’s leader of the low temperature carbon steel ball valve. As a customer-centric organization, we attribute our success to our sales personnel, engineers and trained staff who are here to help you with all your valve needs.
Looking for your perfect low temperature carbon steel ball valve solution? Contact with RXVAL valve manfacturer
