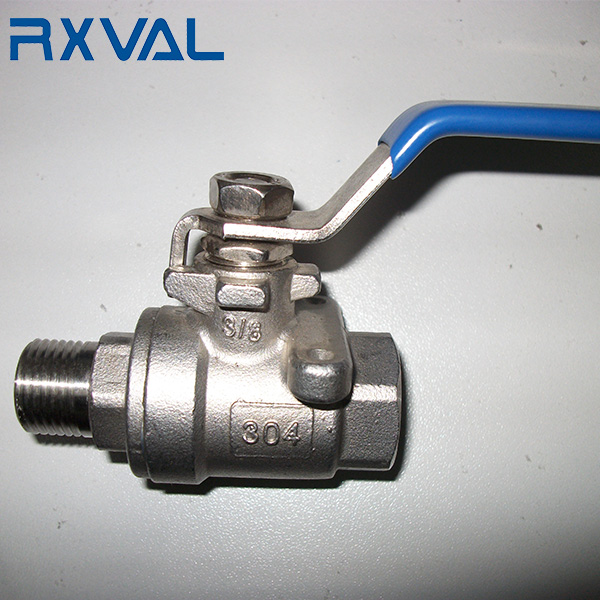

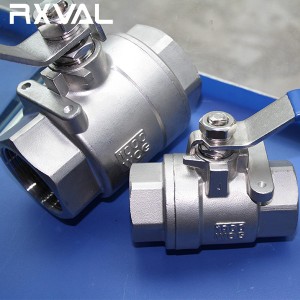

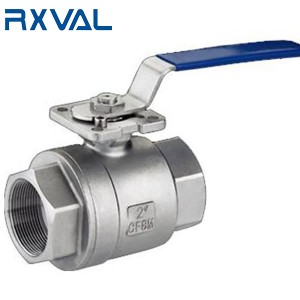

2-PC Stainless Steel Ball Valve

Short Description:

Size 1/4  - 4
Pressure 1000 PSI, 2000 PSI
End Connection NPT, BSP, BSPT
Bore Reduce Bore or Full Bore
Body Material CF8M (SS316), CF8 (SS304),WCB
Ball Material CF8M (SS316), CF8 (SS304),F304,F316
Seat Material PTFE, RPTFE, PEEK,NYLON,PPL
Design ASME B16.34
Face to Face Manufacturer Standard
End Connection ANSI B1.20.1
Checking & Test API 598
Pressure-Temperature ASME B16.34
Operation By Lever ,By Electrical Actuator ,By Pneumatic Actuator
Temperature -20℃ – 200℃ (Depend on Seat Material)

Product Detail

Product Tags

Features

● Blow-out proof stem
●  100% leakage tested
●  Floating Ball,Hollow Or Solid Ball
●  Anti-Static Spring Device
●  Mounting Pad Available
●  ISO-5211 mounting pad for actuator (option)
●  Female, Male , Female-Male
●  Locking device (option)

Standard Material Specification

p
No. PART NAME MATERIAL
1 BODY CF8/CF8M/WCB
2 CAP CF8/CF8M/WCB
3 SEAT PTFE/RPTFE/PPL
4 GASKET PTFE
5 THRUST WASHER PTFE
6 PACKING PTFE
7 GLAND NUT SS304
8 SPRING WASHER SS304
9 NUT SS304
10 STEM SS304/SS316
11 SEAT PTFE/RPTFE/PPL
12 BALL SS304/SS316
13 HANDLE SS201/SS304
14 LOCK DEVICE SS201/SS304

Dimensions and Weights

SIZE

G

D

L

H

W

1/4”

8

10.5

53

48

95

3/8”

10

12

53

48

95

1/2”

15

15

54

49

95

3/4”

20

20

65

55

105

1”

25

25

72

65

130

1-1/4”

32

32

84

75

135

1-1/2”

40

38

95

85

157

2”

50

50

110

95

165

2-1/2”

65

65

163

120

220

3”

80

80

190

130

220

4”

100

100

225

155

280

Temperature - Pressure Rating

temperature

Advantages

1.Made of investment casting for the body of 2-PC Stainless Steel Ball Valve
2.Factory supplied with competitive price
3.All the test reports offered before shipment for approved
4.100% testing before shipment and ensure 0 leakage for 2-PC Stainless Steel Ball Valve

Other Information

Payment Term L/C, T/T, Western Union,Paypal
Delivery Time 3 - 30 days after payment
Seaport Shanghai Or Ningbo China
The 3rd Inspection Available
Sample Available for 2-PC Stainless Steel Ball Valve
Warranty Period 18 months after shipments and 12 months after installed
Valve Test 100% quantity tested before delivery
Packing Plywood Case for 2-PC Stainless Steel Ball Valve
MOQ 10 Pc for 2-PC Stainless Steel Ball Valve
Nameplate According to customer for 2-PC Stainless Steel Ball Valve
Logo According to customer for 2-PC Stainless Steel Ball Valve
Shipment By sea,By Air ,By Express,and door to door available
OEM/ODM Service Available
