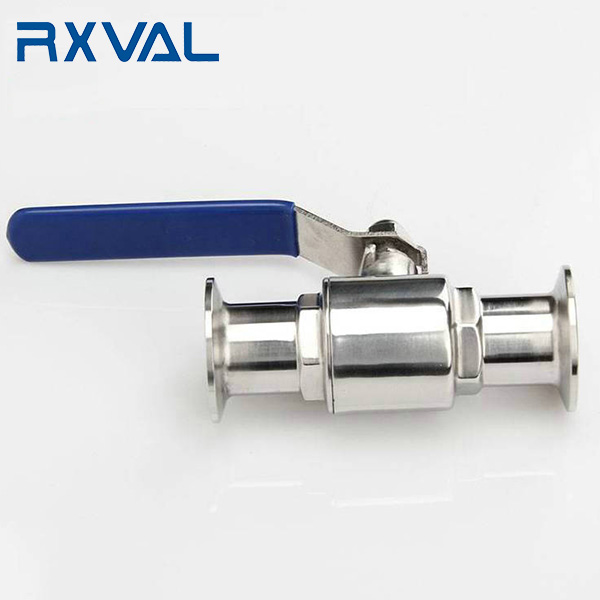

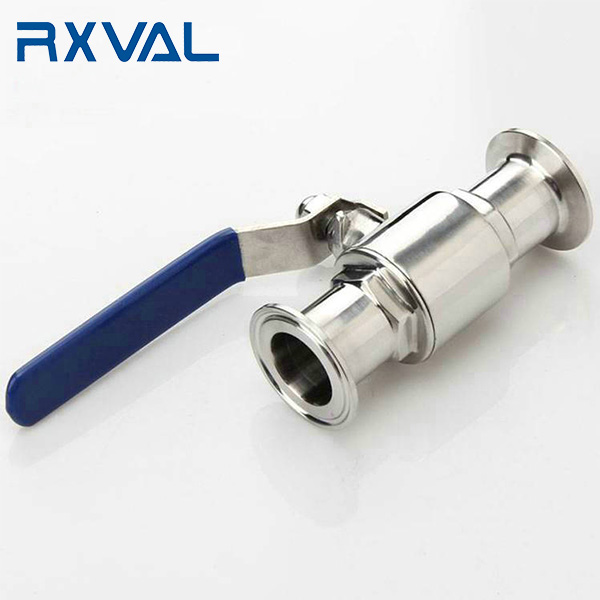

SMS Sanitary Ball Valve Clamp End
Features
Sanitary ball valve is polished inside and out. Clamp ends allow for easy disassembly to clean, repair or replace parts as necessary.
Sanitary ball valve is used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow.
Disc fully machined and polished
Product ships factory direct.
Easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad.
All materials comply with FDA, USDA and 3-A requirements
SMS sizes
|
Size |
Outside Diameter(OD) |
|
Φ19 |
19mm |
|
Φ25 |
25.4mm |
|
Φ32 |
31.8mm |
|
Φ51 |
50.8mm |
|
Φ63 |
63.5mm |
|
Φ76 |
76.2mm |
|
Φ89 |
89mm |
|
Φ102 |
101.6mm |
|
Φ108 |
108mm |
Advantage
1.All materials comply with FDA, USDA & 3-A requirements
2.Investment cast body and end caps
3.Standard with Tri-Clamp ends; other end configurations available
4.100% tested and inspected prior to shipping for Sanitary Ball Valve
5.Full traceability of all components
6.Stainless steel impregnated PTFE steam seats available for high temperature applications
7.Factory supplied with competitive price
Package
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for SMS Sanitary Ball Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for SMS Sanitary Ball Valve |
| MOQ | 1 Pc for SMS Sanitary Ball Valve |
| Nameplate | According to customer for SMS Sanitary Ball Valve |
| Color | According to customer for SMS Sanitary Ball Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
As the name says, sanitary ball valves utilize a ball with a hole drilled through the middle swivel mounted to the valve body.
It operates at full flow while the hole in the ball is oriented in the same direction as the pipe.
However, the hole in the ball can be rotated away from the pipe’s direction, which causes the flow rate to be restricted and ultimately cut off completely, once the hole is oriented 90 degrees perpendicular to the direction of the pipe.
Though many sanitary ball valves variations are produced by different manufacturers, almost all ball valves share the same operational features.
Tips
Customers have special requirements for products and must provide the following instructions in the order contract:
1.Confirmed drawing with sign and stamp
2.Service medium, temperature and pressure range
3.Inspection standards and other requirements such as 3rd party inspection .
4.Tell requirement for the logo print on the valve .
5.Tell requirement about the label .
6.Tell If have special requirement for package .
