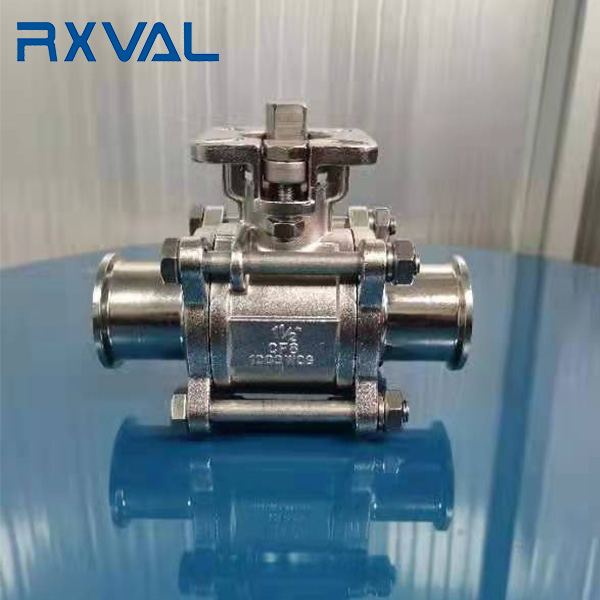

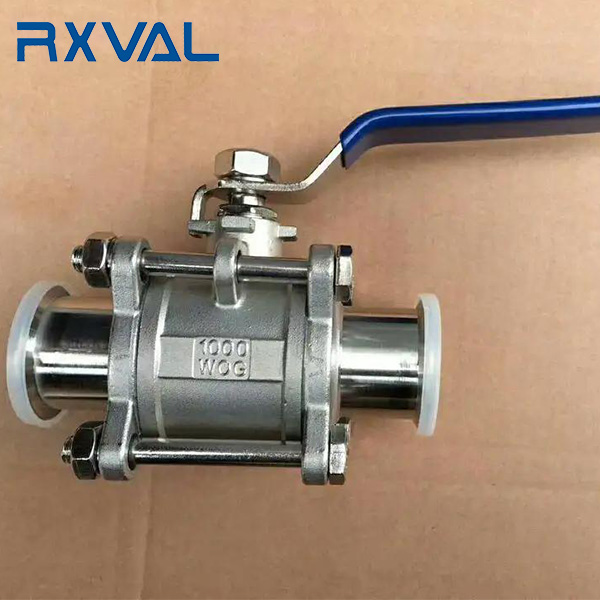

3PC Sanitary Ball Valve Clamp End
Features
● Full Port for Unrestricted Flow
● 8- 12 Ra finish on all internal surfaces
● Virgin PTFE ball seats and cavity fillers
● All materials comply with FDA, USDA and 3-A requirements
● Triple PTFE Stem Seal Design, Live Loaded
● Standard Tri-Clamp ends for sanitary connections
● Clamp end connections and three piece swing-out design for easy cleaning and maintenance.
SMS sizes
|
Size |
Outside Diameter(OD) |
|
Φ19 |
19mm |
|
Φ25 |
25.4mm |
|
Φ32 |
31.8mm |
|
Φ51 |
50.8mm |
|
Φ63 |
63.5mm |
|
Φ76 |
76.2mm |
|
Φ89 |
89mm |
|
Φ102 |
101.6mm |
|
Φ108 |
108mm |
Advantages of Sanitary Ball Valve
1 The structure is simple, the weight and volume are relatively small, and it is easy to disassemble and repair.
2 Since the valve stem only rotates, the packing seal of the valve stem is not easily broken, and the sealing capacity increases as the medium pressure increases.
3 The fluid resistance is small, and the full-bore ball valve has substantially no flow resistance. Pneumatic ball valves are one of the least fluid resistances in all valve classifications.
4 The operation is simple and rapid, and it only needs to be rotated by 90° from full opening to full closing, which is convenient for long-distance control.
5 It is suitable for a wide range of applications, from a few millimeters to a few meters, from high vacuum to high pressure.
Package
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for Sanitary Ball Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Sanitary Ball Valve |
| MOQ | 1 Pc for Sanitary Ball Valve |
| Nameplate | According to customer for Sanitary Ball Valve |
| Color | According to customer for Sanitary Ball Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
Tips
Customers have special requirements for products and must provide the following instructions in the order contract:
1.Confirmed drawing with sign and stamp
2.Service medium, temperature and pressure range
3.Inspection standards and other requirements such as 3rd party inspection .
4.Tell requirement for the logo print on the valve .
5.Tell requirement about the label sample.
6.Tell If have special requirement for package .
Sanitary ball valves are also called as hygienic ball valve which is opened by turning handles attached to balls inside the valves. The ball has a hole or port through the middle. When the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked. A ball valve is durable and usually work to achieve perfect shutoff even after years of disuse.
RXVAL offers comprehensive range of Sanitary Ball Valve solutions that meet all your needs in a reliable and cost effective manner.
