DIN Sanitary check Valve Clamp End
Features
Sanitary check valve is designed for use in process piping installations to prevent reverse flow.

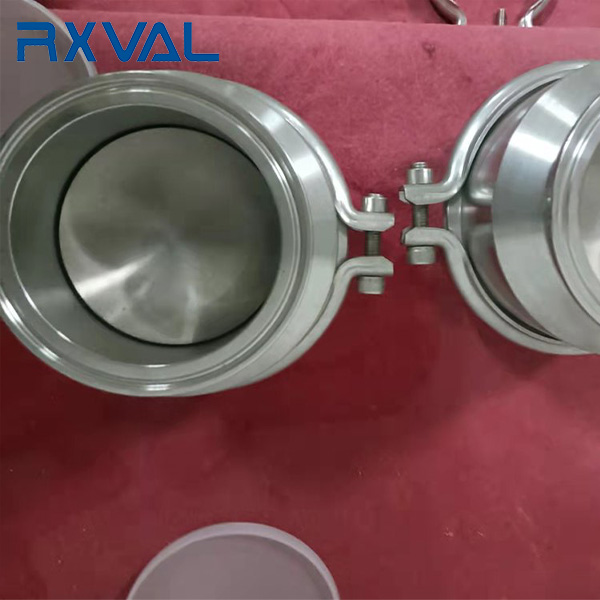

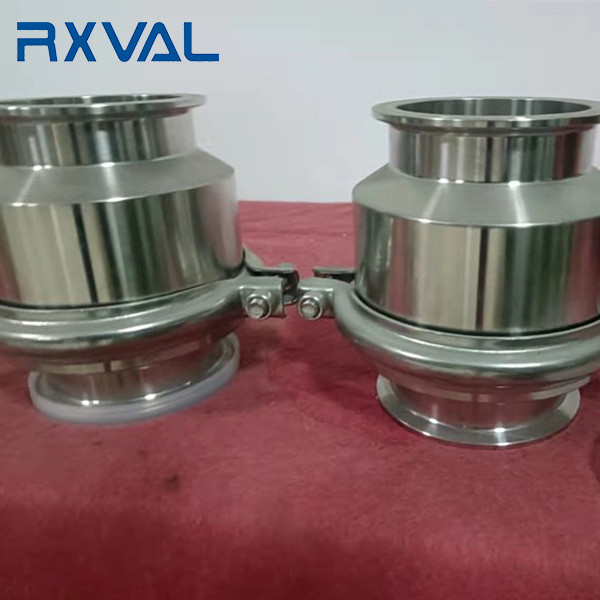

It is in two parts and polished inside and out totally. Sanitary check valve is combined with many elastomeric combinations as well as different end types.
Clamp end connection allow the it can be used to control medium flow and replace easily.
All valves are designed to meet high requirement of the United States 3-A standard, Seal EPDM, Teflon PTFE meet FDA standard.
Full Port
Disc fully machined and polished
DIN sizes
|
Size |
Outside Diameter(OD) |
|
DN20 |
22mm |
|
DN25 |
28mm |
|
DN32 |
34mm |
|
DN40 |
40mm |
|
DN50 |
52mm |
|
DN65 |
70mm |
|
DN80 |
85mm |
|
DN100 |
104mm |
Quality Ensure
1.PMI test to verify material grade
2.Dimension controlling during fabricating and finished
3.Visual and surface 100% examination before shipment
4.Packed in carton box firstly, then in wooden case
5.Third party inspection available.
How does Sanitary Check Valve Working
A check valve opens when the pressure below the valve plug exceeds the pressure above the valve plug and the spring force. The valve close when pressure equalization has been achieved. The below picture shows the right installation:
Sanitary check valves are specifically used for the food handling and processing industries to prevent back-flow of product. Commonly used with liquid products, spring check valves are designed to assist closure pressure to create a positive shutoff.
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for Sanitary check valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Sanitary check valve |
| MOQ | 1 Pc for Sanitary check valve |
| Nameplate | According to customer for Sanitary check valve |
| Color | According to customer for Sanitary check valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
Sanitary check valve has many advantages such as removable connection, simple structure, and easy maintenance;
RXVAL Sanitary check valves are high-quality pieces to ensure the use of performance and service life;
RXVAL can provide valve body and disc materials such as AISI 304 or AISI 316L, 304L, and 316 materials according to your requests.
