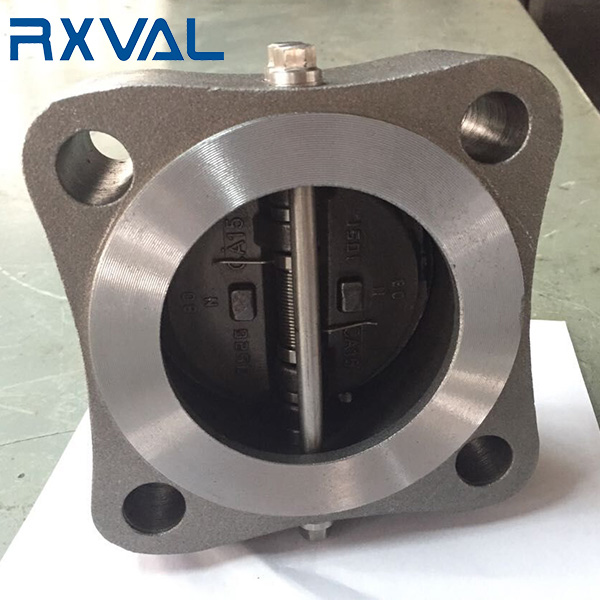

API 594 Dula Plate Check Valve

Short Description:

Size	2 “ - 48 ”
Pressure	150LB,300LB,600LB,900LB,1500LB,2500LB
End Connection	Wafer,Lug,Flange
Bore	Standard Bore
Body Material	ASTM A216 WCB, WCC,LCB, LCC,WC6, WC9, C5,CF8, CF8M, GR.4A,5A F51,C95800
Design	API 594
Face to Face	ANSI B16.10
End Flange	2”-24” to ANSI B16.5 / 26”-48” to MSS SP-44 /API 605
Checking & Test	API 598
Marking	MSS SP-25
Pressure-Temperature	ASME B16.34
Nace	NACE MR-01-75

Send email to us

Product Detail

Product Tags

Features

Simple Installation
Lifting Lug for big size
Double Spring and single Spring for different size.
Retainerless body design with no external body penetrations eliminating the possibility of outside leakage.
Disc assembly secured in place by high strength key.
End gasket surfaces are uninterrupted with no screws or lock pins breaking the gasket surface.
Seat faces lapped for smooth finish and superior sealing.
High torsion Inconel springs for quick closing.
Each valve is shell and seat pressure tested per industry standard API 598.
Available in Wafer, Lug and Double Flange styles.
Each valve has a unique certification number that is traceable to the valve certification sheet which includes MTR data, pressure test report, and inspection report.

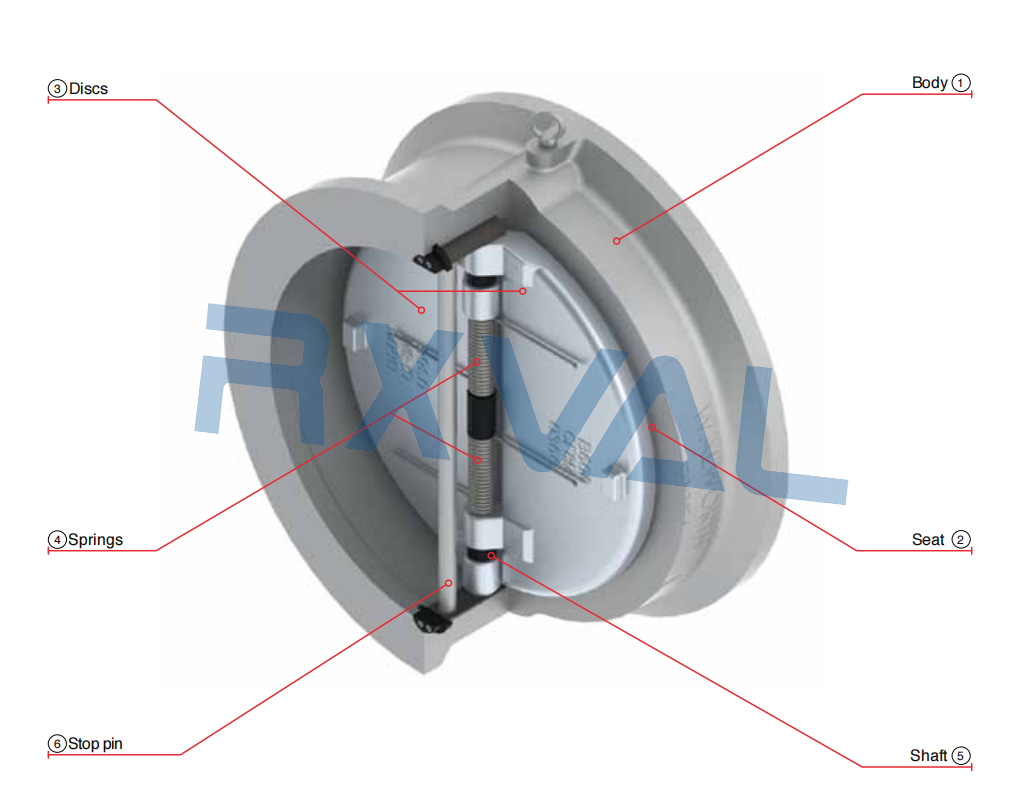

No.	Parts	Material
1	Body	A216 WCB
2	Seat	WCB+13Cr
3	Disc	A351 CF8
4	Springs	Inconel X-750
5	Shaft	A276 410
6	Stop Pin	A276 410
*Select different materials for different working temperature and media

Features

• Low Pressure Drop (High Cv)
Dual plate wafer check valves have larger open area than other designs, thus reducing pressure drop compared to swing, lift or other check valves.
• Light Weight
Reduces weight by 80–90% compared to conventional Flanged check valves.
• Lower Cost
Light weight, compact profiles and the elimination of flanges allows Dual Plate check valves to be manufactured more economically than other designs, especially as pipe diameters increase.
• Alleviates Water Hammer
RXVAL spring activated discs are designed to close our valves quickly.This assures high performance, eliminating chatter and creatingdynamic responsiveness in a non-slam design.
• Simple Installation
Easier to install, remove and replace in both new and existing piping systems.
• Retainerless Design
Ideal for critical applications where valve body penetration and the possibility of leakage cannot be tolerated.

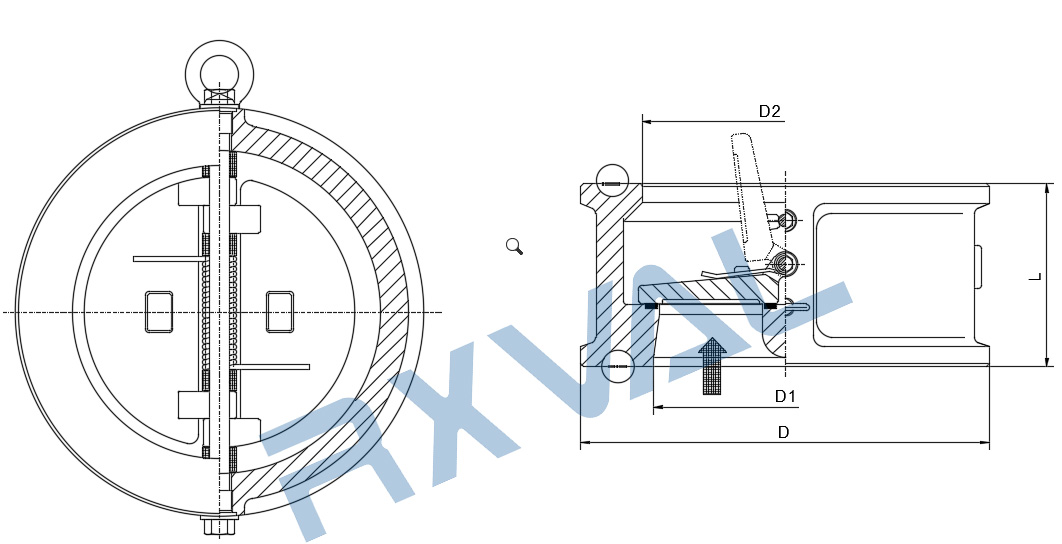

Dimension and Weight

Class 150					Weight(Kg)	Class 300				Weight(Kg)
NPS	L	D	D2	D1		L	D	D2	D1
2	60	103	56	51	2	60	110	58	51	3
2-1/2	67	122	73	65	3	67	128	73	65	4
3	73	135	88	80	4	73	147	88	80	6
4	73	173	108	102	6	73	179	108	102	8
5	86	195	132	127	8	86	214	132	127	15
6	98	220	160	152	13	98	249	160	152	18
8	127	277	210	203	25	127	305	210	203	31
10	146	337	266	254	39	146	359	266	254	51
12	181	407	310	305	54	181	420	310	305	77
14	184	778	355	350	80	222	483	355	350	117
16	191	512	405	400	117	232	537	405	400	190
18	203	547	455	450	138	264	594	455	450	200
20	219	604	505	500	163	292	652	505	500	265
24	222	715	605	600	331	318	772	608	600	410
26	222	770	650	633	380	356	767	640	633	560
28	305	827	700	700	400	368	821	985	685	580
30	305	878	750	746	440	368	882	740	735	660
32	305	935	800	796	580	368	936	784	784	970
36	368	1045	894	874	660	483	1044	880	873	1010
40	432	1167	985	976	890	546	1146	985	976	1450
42	432	1213	1055	1050	980	568	1196	1045	1035	1540
48	524	1397	1166	1166	1450	629	1365	1190	1166	2250
*CL150 &CL300 for reference,For more data contact with RXVAL manufacturer

Payment Term	L/C, T/T, Western Union,Paypal
Delivery Time	15 - 30 days after payment
Seaport	Shanghai Or Ningbo China
The 3^rd Inspection	Available
Sample	Available for Dual Plate Check Valve
Warranty Period	18 months after shipments and 12 months after installed
Valve Test	100% quantity tested before delivery
Packing	Plywood Case for Dual Plate Check Valve
MOQ	1 Pc for Dual Plate Check Valve
Nameplate	According to customer for Dual Plate Check Valve
Color	According to customer for Dual Plate Check Valve
Shipment	By sea,By Air ,By Express,and door to door available
OEM/ODM Service	Available
