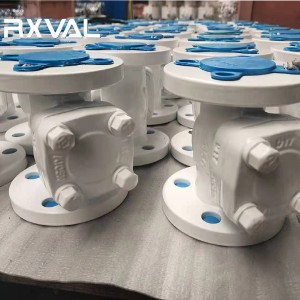

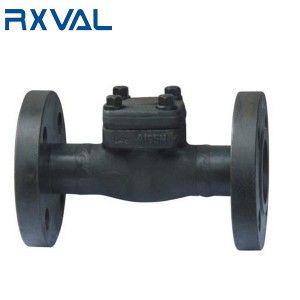

Piston Forged Steel Check Valve
Features
● Bolted Bonnet &Welded Bonnet
● Low Fugitive Emission
● Horizontal Type
● Valves with Low Cv Values
● Compact and Sturdy designs for high pressure-Temperature Service .
● A spring can be added to the lift type check valve as a piston type one.
● Swing Type Disc or Lift Type Disc
● Applicable medium: water, steam, oil, etc
● Simple in shape, short face-to-face length, good technical in producing, and widely applied
| No. | Part | Material |
| 1 | Body | ASTM A105
ASTM A182-F11/F22/F5/F9 ASTMA182-F304,F316, F321, F304L,F316L |
| 2 | Disc | ASTM A105
ASTM A182-F11/F22/F5/F9 ASTM A182-F304,F316, F321, F304L,F316L |
| 3 | Gasket | Graphite & stainless steel |
| 4 | Bonnet | ASTM A105
ASTM A182-F11/F22/F5/F9 ASTM A182-F304,F316, F321, F304L,F316L |
| 5 | Bolt | ASTM A193-B7, A320-B8, F321, F304L,F316L |
Dimensions and Weights
CLASS 800/1500 ONLY, OTHER PRESSURE RATING PLEASE CONTACT US.
|
Class |
800 |
|||||||
|
Size |
Mm(in) Reduced Bore |
15(1/2) |
20(3/4) |
25(1) |
32(1 1/4) |
40(1 1/2) |
50(2) |
|
|
|
Mm(in) Full Bore |
10(3/8) |
15(1/2) |
20(3/4) |
25(1) |
32(1- 1/4) |
40(1- 1/2) |
50(2) |
|
L |
mm |
80 |
92 |
111 |
120 |
120 |
140 |
170 |
|
H |
mm |
61 |
61 |
78 |
85 |
103 |
119 |
132 |
|
Weight |
Kg |
1.0 |
1.1 |
1.8 |
3.2 |
4.5 |
7.3 |
9.8 |
|
Class |
1500 |
|||||||
|
Size |
Mm(in) Reduced Bore |
15(1/2) |
20(3/4) |
25(1) |
32(1- 1/4) |
40(1 1/2) |
50(2) |
|
|
|
Mm(in) Full Bore |
10(3/8) |
15(1/2) |
20(3/4) |
25(1) |
32(1 1/4) |
40(1- 1/2) |
50(2) |
|
L |
mm |
80 |
92 |
111 |
120 |
152 |
172 |
200 |
|
H |
mm |
61 |
61 |
78 |
85 |
103 |
119 |
132 |
|
Weight |
Kg |
1.2 |
1.4 |
2.5 |
3.9 |
5.5 |
8.8 |
12.5 |
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for Threaded Forged Steel Check Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Threaded Forged Steel Check Valve |
| MOQ | 1 Pc for Threaded Forged Steel Check Valve |
| Nameplate | According to customer for Threaded Forged Steel Check Valve |
| Color | According to customer for Threaded Forged Steel Check Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
For almost 10 years, RXVAL has continually committed itself to offer the best Piston Forged Steel Check valve products to meet a wide range of applications and requirements.
As an valve manufacturer, RXVAL has your perfect Piston Forged Steel Check valve solution. Our success in the valves industry is attributed to our customer-centric team of sales personnel, engineers, workers and after-service staff that are collectively committed to providing quality products at a price you would come to expect.
