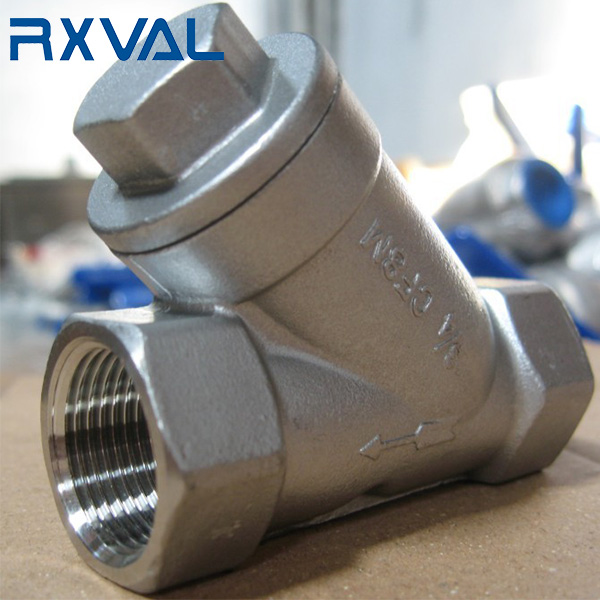

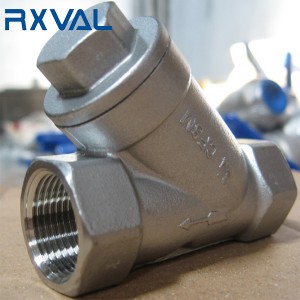

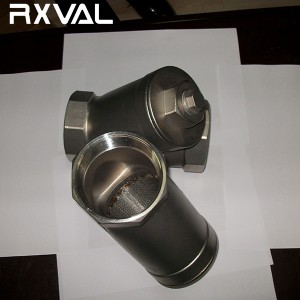

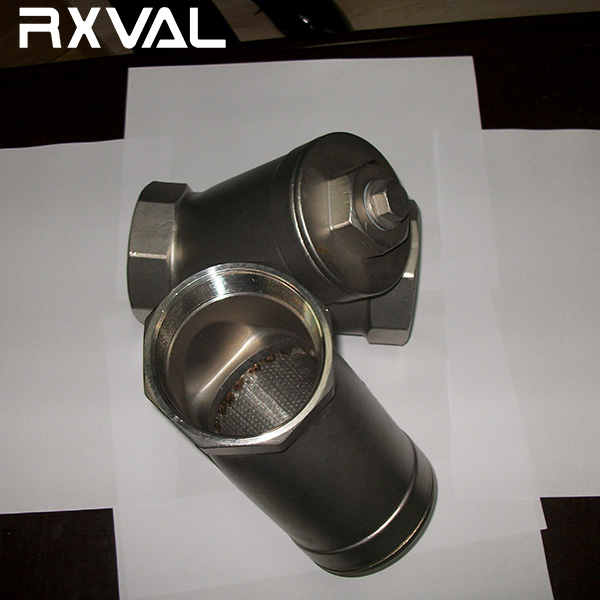

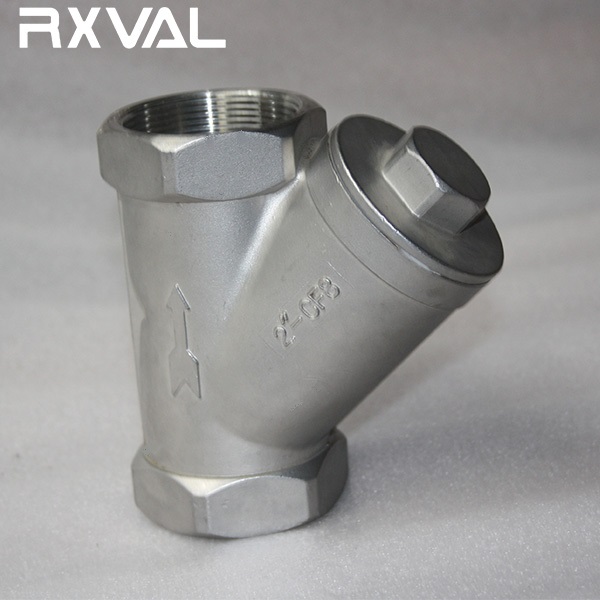

API casr Steel Y Strainer Flanged End

Short Description:

Size 1/2  - 4
Pressure 800 PSI
End Connection Threaded ,Screwed, NPT,BSPT
Bore Standard Bore
Body Material Cast Steel , Stainless Steel, Alloy Steel
Mesh Material Stainless Steel, Alloy Steel
Design ASME B16.34
End Flange 2”-24” to ANSI B16.5 / 26”-48” to MSS SP-44 /API 605
Checking & Test API 598
Pressure-Temperature ASME B16.34

Product Detail

Product Tags

Features

Y-shaped strainers for steam,air and water protect equipment from dirt,rust or scale in the pipeline.
1.Simple yet rugged construction ensures long service life .
2.Double-layer stainless steel screen with large surface area ensures trouble-free operation.
3.Design for easy inline cleaning and maintenance.

How to install Y Strainer

Cast Steel Y Strainer  (1)

Step 1: Install the blow-down valve (if necessary) at the blow-off connection.
Step 2: To ensure maximum efficiency, install a pressure gauge at the inlet and outlet.
Step 3: The Y strainer needs to be positioned in the pipeline ahead of any equipment that requires protection. For example, if it is the pump that is requiring protection, the Y strainer should be placed on the suction side of the pump.
Step 4: Before you put the Y strainer in place, support the existing pipeline with pipe supports near the inlet and outlet connection.
Step 5: The wye side of the strainer must be pointed downward. Ensure there is ample space at the wye side of the strainer for screen removal.
Step 6: Place the Y strainer into the pipeline, ensuring that the flow arrow on the body of the Y strainer is pointing in the direction of the pipeline flow.

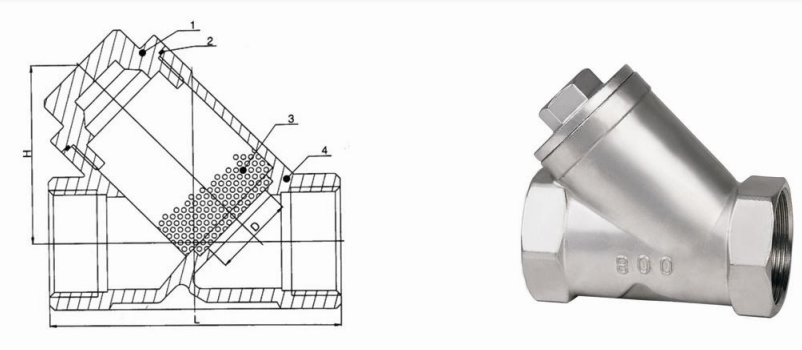

Cast Steel Y Strainer  (2)

No.

Part

Material

1

Cap

CF8/CF8M

2

Gasket

PTFE

3

Screen

304/316

4

Body

CF8/CF8M

More Information

Payment Term L/C, T/T, Western Union,Paypal
Delivery Time 15 - 30 days after payment
Seaport Shanghai Or Ningbo China
The 3rd Inspection Available
Sample Available for Threaded Y Strainer
Warranty Period 18 months after shipments and 12 months after installed
Valve Test 100% quantity tested before delivery
Packing Plywood Case for Threaded Y Strainer
MOQ 1 Pc for Threaded Y Strainer
Nameplate According to customer for Threaded Y Strainer
Color According to customer for Threaded Y Strainer
Shipment By sea,By Air ,By Express,and door to door available
OEM/ODM Service Available

Y-Strainer is used for filtration of mechanical impurities contained in transported media. Y-Strainer ensure proper functioning of valves or other devices. Working media can be nonagressive liquids, vapours and gases.
For almost 10 years, RXVAL has continually committed itself to offer the best Cast Steel Y Strainer products to meet a wide range of applications and requirements.
As an valve manufacturer, RXVAL has your perfect Cast Steel Y Strainer solution. Our success in the valves industry is attributed to our customer-centric team of sales personnel, engineers, workers and after-service staff that are collectively committed to providing quality products at a price you would come to expect.
