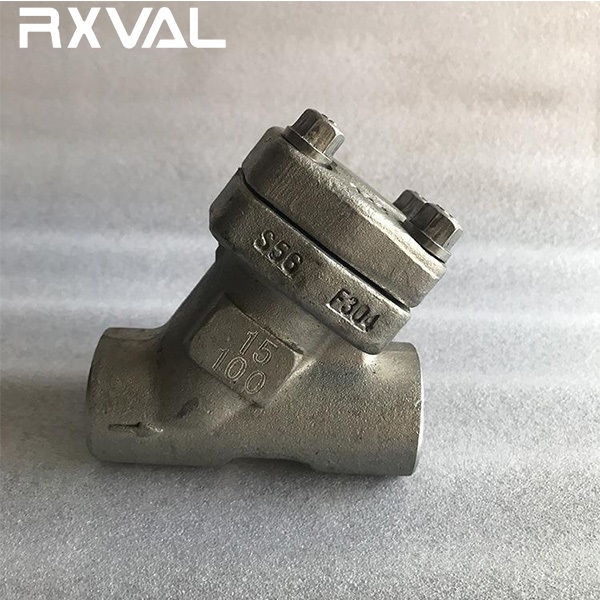

Forged Y Strainer CL 800/CL1500/CL2500
Features
Y-shaped strainers for steam,air and water protect equipment from dirt,rust or scale in the pipeline.
1.Simple yet rugged construction ensures long service life .
2.Double-layer stainless steel screen with large surface area ensures trouble-free operation.
3.Design for easy inline cleaning and maintenance.
4.Bolted Bonnet or Welded Bonnet
Step 1: Install the blow-down valve (if necessary) at the blow-off connection.
Step 2: To ensure maximum efficiency, install a pressure gauge at the inlet and outlet.
Step 3: The Y strainer needs to be positioned in the pipeline ahead of any equipment that requires protection. For example, if it is the pump that is requiring protection, the Y strainer should be placed on the suction side of the pump.
Step 4: Before you put the Y strainer in place, support the existing pipeline with pipe supports near the inlet and outlet connection.
Step 5: The wye side of the strainer must be pointed downward. Ensure there is ample space at the wye side of the strainer for screen removal.
Step 6: Place the Y strainer into the pipeline, ensuring that the flow arrow on the body of the Y strainer is pointing in the direction of the pipeline flow.
How to install Y Strainer
|

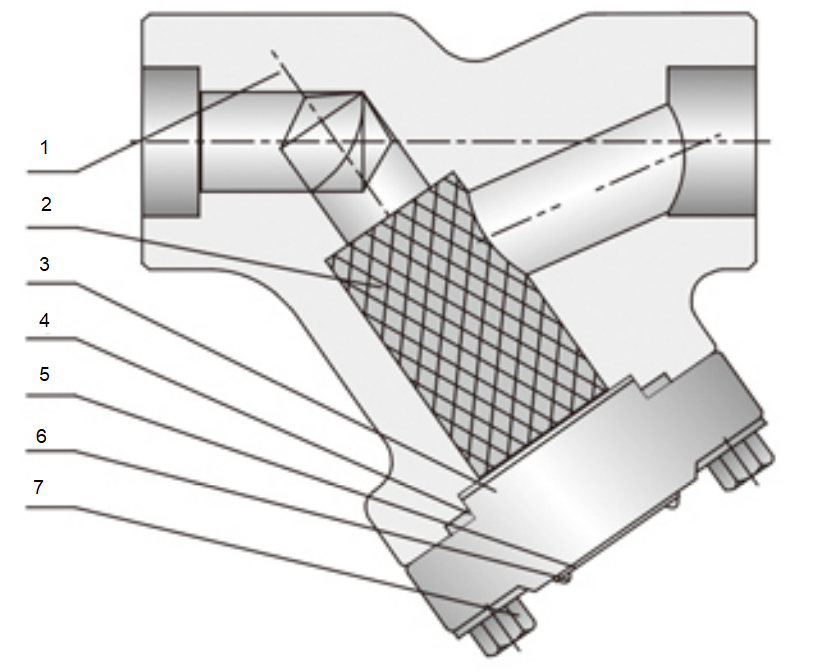

No. |
Part |
Material |
|
1-1 |
Body |
A105,LF2,F11,F304(L),F316(L),F51 |
|
2-40 |
Screen |
304(L),316(L) |
|
3-6 |
Bonnet |
A105,LF2,F11,F304(L),F316(L),F51 |
|
4-5 |
Gasket |
304+Graphite |
|
5-15 |
Nameplate |
Al |
|
6-32 |
Rivet |
H62 |
|
7-7 |
Bolt |
B7,L7,B8(M) |
|
CLASS 800 |
|||||||||
| NPS |
R.P |
- |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
|
F.P |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
||

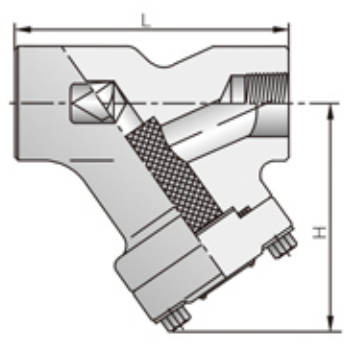

| Face to Face |
L |
98 |
98 |
98 |
120 |
140 |
140 |
170 |
|
| Height |
H |
70 |
70 |
70 |
100 |
110 |
120 |
120 |
|
| Flow Port |
d |
7 |
9 |
13 |
17.5 |
30 |
30 |
35 |
|
|
Weight(Kg) |
2.2 |
2.2 |
2.1 |
4.2 |
8.9 |
8.9 |
10 |
||
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for Forged Y Strainer |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Forged Y Strainer |
| MOQ | 1 Pc for Forged Y Strainer |
| Nameplate | According to customer for Forged Y Strainer |
| Color | According to customer for Forged Y Strainer |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |

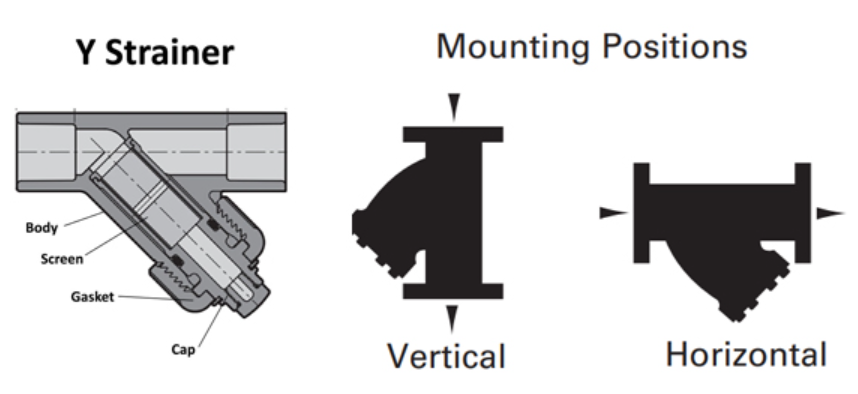

Y strainers filter out solids by using a perforated or wire mesh strainer. They are most frequently used in pressurized lines for gas, steam, or liquid. While it is most common to see Y strainers installed horizontally, they can be installed vertically as well. Ensuring proper vertical installation of Y strainers involves understanding where in the pipeline the strainer should be placed, making sure there’s room for screen removal during clean outs, and, most importantly, aligning the arrow on the strainer with the pipeline flow.
RXVAL offers comprehensive range of valve and valve automation solutions that meet all your needs in a reliable and cost effective manner. A long and proven track record in catering to various industrial sectors such as Chemical, Pharma, Oil & Gas, Power and Fertilizers through its solutions is the key strength of RXVAL.
Y-Strainer is used for filtration of mechanical impurities contained in transported media. Y-Strainer ensure proper functioning of valves or other devices. Working media can be nonagressive liquids, vapours and gases.
For almost 10 years, RXVAL has continually committed itself to offer the best Cast Steel Y Strainer products to meet a wide range of applications and requirements.
As an valve manufacturer, RXVAL has your perfect Cast Steel Y Strainer solution. Our success in the valves industry is attributed to our customer-centric team of sales personnel, engineers, workers and after-service staff that are collectively committed to providing quality products at a price you would come to expect.
