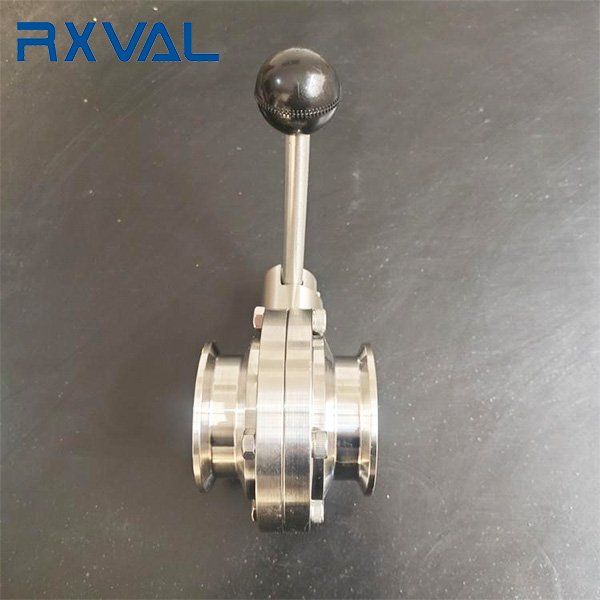

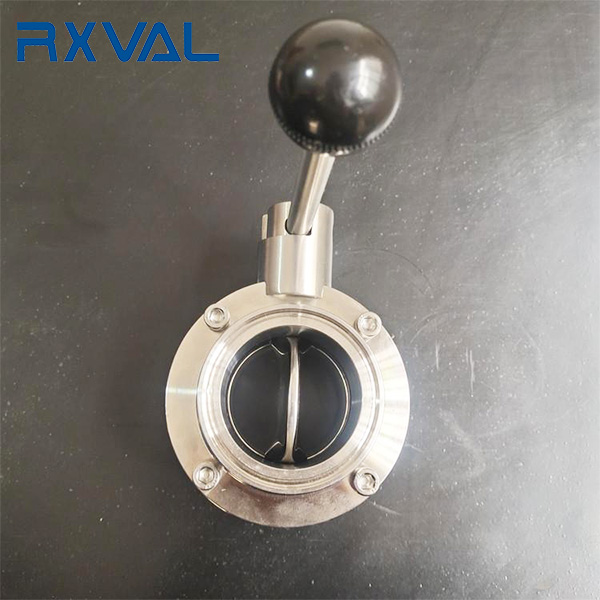

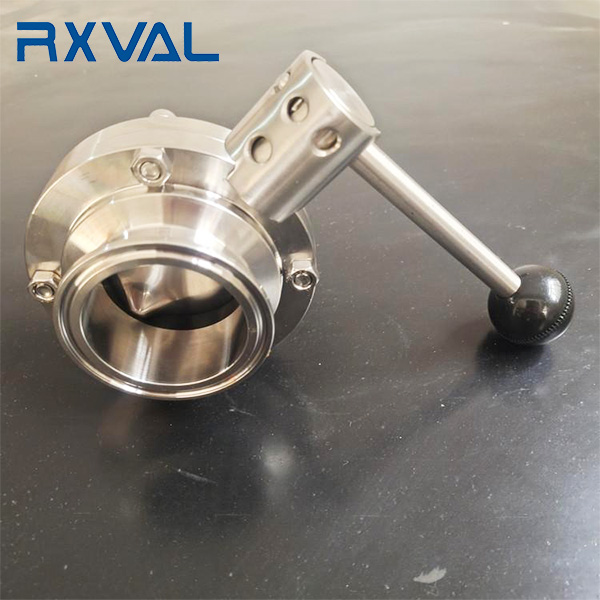

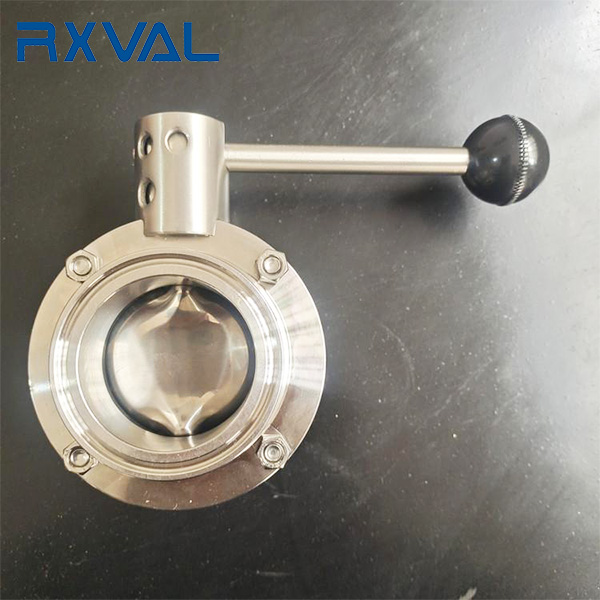

DN25 Sanitary Butterfly Valve Clamp End

Short Description:

Size DN 20- DN100
Material 304/304L and 316/316L Stainless Steel
Connection Clamp,Welding,Threaded
Pressure up to 150 PSI
Temperature up to 130℃
Seat Material EPDM, PTFE, Silicon, Viton,NBR,FPM and son on
Operation Pull Handle, Multi-position Handle
Applicable Standard DIN/SMS/IDF/ISO
Port Full Port
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc.

Product Detail

Product Tags

Features

Clamp end butterfly Valve allows for easy disassembly to clean, repair or replace parts as necessary.
Disc fully machined and polished
These valves are specifically designed to optimize and maintain the sanitary fluid operations.

DIN sizes

Size

Outside Diameter(OD)

DN20

22mm

DN25

28mm

DN32

34mm

DN40

40mm

DN50

52mm

DN65

70mm

DN80

85mm

DN100

104mm

Quality Ensure

1.PMI test to verify material grade
2.Dimension controlling during fabricating and finished
3.Visual and surface 100% examination before shipment
4.Packed in carton box firstly, then in wooden case
5.Third party inspection available.

Advantages

The body and disc of the Sanitary butterfly valve are built with high-precision CNC lathe processing.
Sanitary butterfly valves are compact, lightweight, and use a simple composition with only a few components.
Using a butterfly valve is simple and convenient; the disc only needs to rotate 90° to be able to open and close quickly and provide dependable fluid control characteristics.
A health-grade pneumatic butterfly valve should maintain a fully open position, the disc thickness provides the medium flow through the valve body, and thus the pressure drop caused by the small valve has good flow control characteristics.
The Sanitary butterfly valve has two types of seals — a ballistic seal and a metal seal. An elastic seal valve can be embedded in the valve body or attached to the disc around.

Package

SMS Sanitary Butterfly Valve Clamp End (6)

More Information

Payment Term L/C, T/T, Western Union,Paypal
Delivery Time 15 - 30 days after payment
Seaport Shanghai Or Ningbo China
The 3rd Inspection Available
Sample Available for Sanitary Butterfly Valve
Warranty Period 18 months after shipments and 12 months after installed
Valve Test 100% quantity tested before delivery
Packing Plywood Case for Sanitary Butterfly Valve
MOQ 1 Pc for Sanitary Butterfly Valve
Nameplate According to customer for Sanitary Butterfly Valve
Color According to customer for Sanitary Butterfly Valve
Shipment By sea,By Air ,By Express,and door to door available
OEM/ODM Service Available

What is the purpose of a sanitary butterfly valve?

Sanitary butterfly valves are used for the connection and control of conveyance pipes processing fluid and semi-fluid material in the food and beverage industry. Because they are made of stainless steel, they can ensure the hygienic quality of the materials during conveyance. Sanitary valves are also easy to clean and disinfect to keep the pipes clean and hygienic.
Various industrial applications have their own specifications for the material construction of sanitary butterfly valves. Most are made of stainless steel, specifically, SUS304 and 316L. The production of these two materials meets the special requirements of a variety of food and bio-pharmaceutical field.
