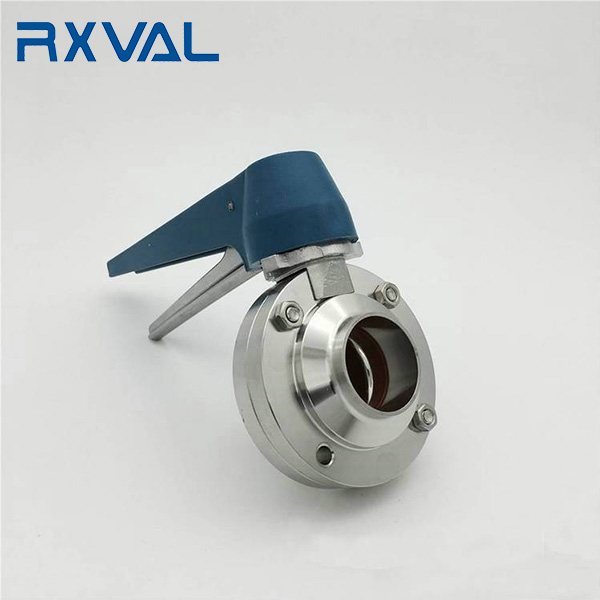

DIN Sanitary Butterfly Valve Weld End with Multi-position Handle
Features
Butt-welded butterfly Valves are widely used in process piping systems for isolation and control.
Handle Type: 4-position Pull handle; multi-position handle with plastic cover or in pure stainless steel, lockable multi-position handle.
Applicable Standards: DIN/SMS/IDF/ISO
DIN sizes
|
Size |
Outside Diameter(OD) |
|
DN20 |
22mm |
|
DN25 |
28mm |
|
DN32 |
34mm |
|
DN40 |
40mm |
|
DN50 |
52mm |
|
DN65 |
70mm |
|
DN80 |
85mm |
|
DN100 |
104mm |
Quality Ensure
1.PMI test to verify material grade
2.Dimension controlling during fabricating and finished
3.Visual and surface 100% examination before shipment
4.Packed in carton box firstly, then in wooden case
5.Third party inspection available.
Advantages
The body and disc of the Sanitary butterfly valve are built with high-precision CNC lathe processing.
Sanitary butterfly valves are compact, lightweight, and use a simple composition with only a few components.
Using a butterfly valve is simple and convenient; the disc only needs to rotate 90° to be able to open and close quickly and provide dependable fluid control characteristics.
A health-grade pneumatic butterfly valve should maintain a fully open position, the disc thickness provides the medium flow through the valve body, and thus the pressure drop caused by the small valve has good flow control characteristics.
The Sanitary butterfly valve has two types of seals — a ballistic seal and a metal seal. An elastic seal valve can be embedded in the valve body or attached to the disc around.
Package
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for Sanitary Butterfly Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Sanitary Butterfly Valve |
| MOQ | 1 Pc for Sanitary Butterfly Valve |
| Nameplate | According to customer for Sanitary Butterfly Valve |
| Color | According to customer for Sanitary Butterfly Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
What is the purpose of a sanitary butterfly valve?
Sanitary butterfly valve is a stainless steel butterfly valve with high precision and purity requirements for the industries of food and beverage, beer brewing, biopharmaceutical and fine chemicals.
Stainless steel sanitary butterfly valve has a simple structure, it is mainly composed of a split body, a valve disc, a valve stem and a driving.
Sanitary butterfly valve not only have the advantages of simple structure, small size, light weight, small material consumption, small installation size etc., but also have small driving torque, simple and rapid operation, and good flow regulation, sealing characteristics etc.
Generally the pressure requirements of hygienic system is low and small, sanitary butterfly valves are mainly soft seat.
RXVAL’s butterfly valves are mainly made of forged stainless steel 304 or 316L, which has good corrosion resistance, working performance and long service life.
RXVAL can provide different types and standard series of sanitary butterfly valves according to customer requirements, adapting to different connection types and driving methods to meet the diverse needs of different projects.
