DIN Flanged Cast Steel Globe Valve
Features
● OS&Y, Rising Stem
● Straight pattern Body
● Bolted Bonnet
● Threaded or Welded Seat Ring
● Renewable seat ring
|

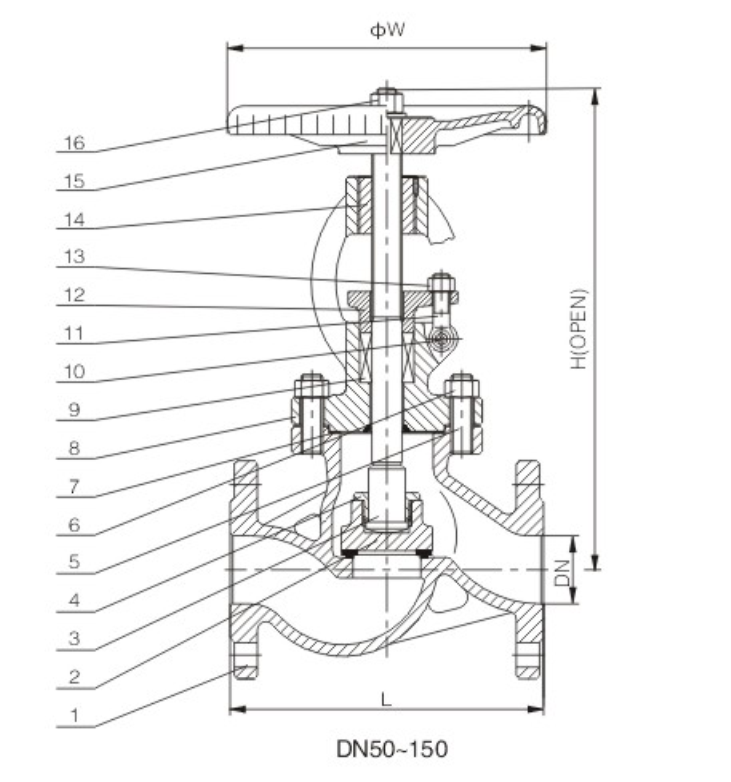

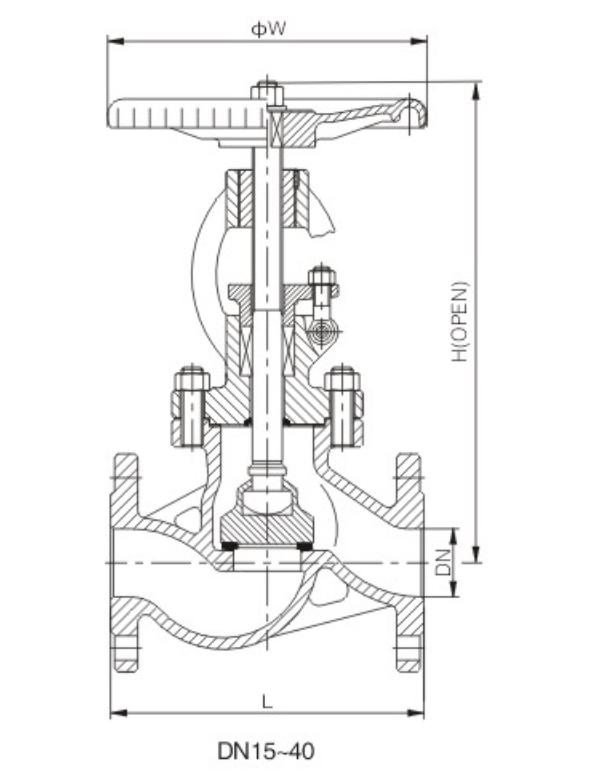

NO. |
Part Name |
Material |
|
1 |
Body |
GS-C25+13Cr |
|
2 |
Disc |
A105+13Cr |
|
3 |
Stem |
A182 F6 |
|
4 |
Disc Nut |
A105 |
|
5 |
Bolt |
A193 B7 |
|
6 |
Nut |
A194 2H |
|
7 |
Gasket |
Graphite |
|
8 |
Bonnet |
GS-C25 |
|
9 |
Packing |
Graphite |
|
10 |
Pin |
Carbon Steel |
|
11 |
Bolt |
A193 B7 |
|
12 |
Gland |
GS-C25 |
|
13 |
Nut |
A194 2H |
|
14 |
Stem Nut |
Bronze |
|
15 |
Handwheel |
A105 |
|
16 |
Nut |
A194 2H |
|
DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
|
|
L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
|
|
H |
210 |
230 |
250 |
275 |
300 |
325 |
385 |
410 |
455 |
410 |
560 |
|
|
W |
PN16 |
120 |
120 |
140 |
160 |
180 |
200 |
220 |
250 |
300 |
350 |
400 |
|
|
PN25 |
120 |
120 |
160 |
160 |
200 |
200 |
220 |
250 |
300 |
350 |
400 |
|
|
PN40 |
120 |
120 |
160 |
160 |
200 |
240 |
280 |
320 |
360 |
400 |
450 |
|
Weight(kg) |
PN16 |
5.5 |
7.5 |
8 |
8.6 |
13 |
20 |
25 |
34 |
45 |
65 |
70 |
|
|
PN25 |
6 |
7.5 |
8 |
9 |
14 |
22 |
29 |
35 |
47 |
70 |
80 |
|
|
PN40 |
6 |
7.5 |
8 |
9 |
15 |
24 |
30 |
35 |
48 |
75 |
95 |
Test Pressure to DIN 3230
|
PN |
Shell Test |
Back Seat |
Seat Test |
Gas Test |
|
16 |
2.4 Mpa |
1.76 Mpa |
1.76 Mpa |
0.6 Mpa |
|
25 |
3.75 Mpa |
2.75 Mpa |
2.75 Mpa |
0.6 Mpa |
|
40 |
6.0 Mpa |
4.4 Mpa |
4.4 Mpa |
0.6 Mpa |
|
64 |
9.6 Mpa |
7.1 Mpa |
7.1 Mpa |
0.6 Mpa |
Advantage
When compared to a gate valve, a globe valve generally yields much less seat leakage.
This is because the disk-to-seat ring contact is more at right angles, which permits the force of closing to tightly seat the disk.
Globe valves can be arranged so that the disk closes against or in the same direction of fluid flow.
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for DIN Globe Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for DIN Globe Valve |
| MOQ | 1 Pc for DIN Globe Valve |
| Nameplate | According to customer for DIN Globe Valve |
| Color | According to customer for DIN Globe Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
DIN Globe valves are ideal for unidirectional, controlled flow.
The flow characteristics of a globe valve is repeatable, consistent, and easy to control at any open position, which makes the design suitable for throttling applications.
Note: If line pressure drops below 20%, cavitation, vibration, noise, may be caused, resulting in hardware damage.
If these conditions are likely, consult your RXVAL representative for recommendations .
RXVAL offers comprehensive range of valve and valve automation solutions that meet all your needs in a reliable and cost effective manner. A long and proven track record in catering to various industrial sectors such as Chemical, Pharma, Oil & Gas, Power and Fertilizers through its solutions is the key strength of RXVAL.
