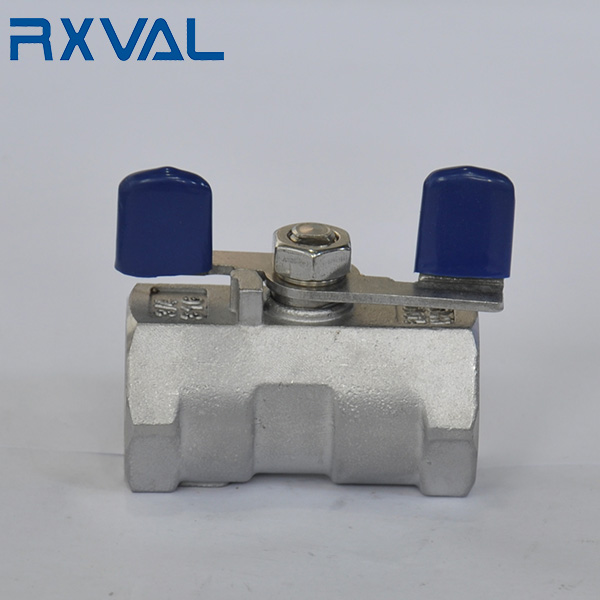

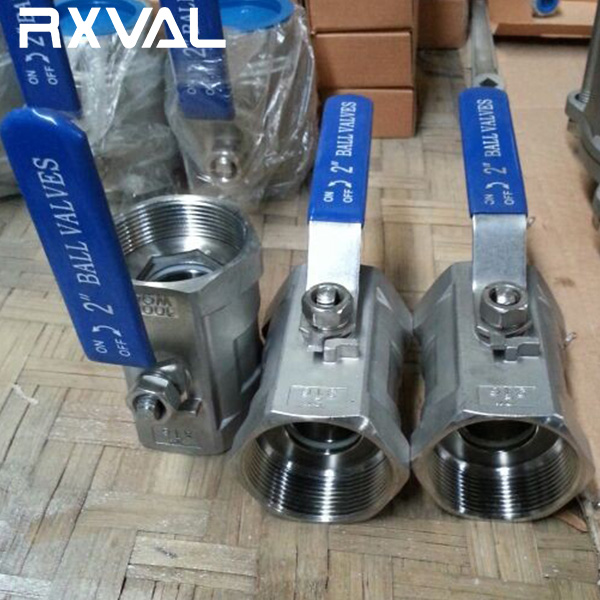

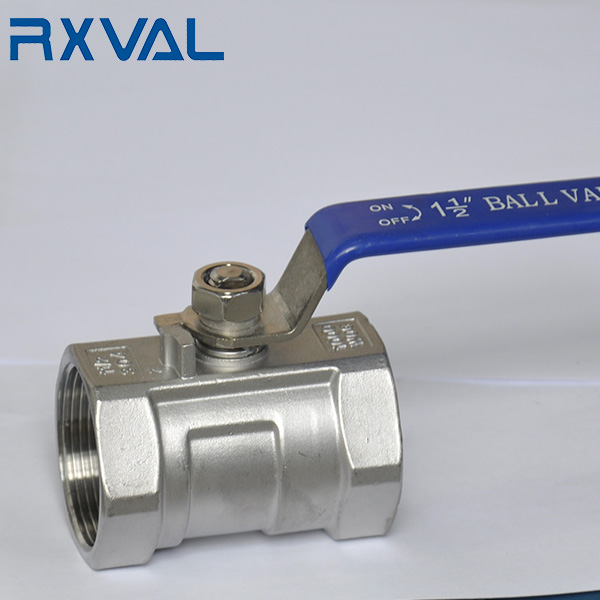

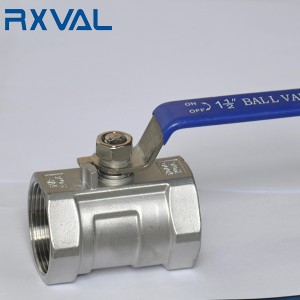

1 Piece Stainless Steel Ball Valve 1000 psi
Features
● Blow-out proof stem
● 100% leakage tested
● Floating Ball,Hollow Or Solid Ball
● Anti-Static Spring Device
● Locking device (option)
Standard Material Specification
| No. | PART NAME | MATERIAL |
| 1 | BODY | CF8/CF8M/WCB |
| 2 | SEAT | PTFE/RPTFE/PPL |
| 3 | BALL | SS304/SS316 |
| 4 | WASHER | SS304 |
| 5 | HEX-NUT | SS304/SS316 |
| 6 | SEAL GASKET | PTFE |
| 7 | STEM PACKING | PTFE |
| 8 | GLAND NUT | SS304/SS316 |
| 9 | HANDLE | SS201/SS304 |
| 10 | SPRING WASHER | SS304 |
| 11 | NUT | SS304 |
| 12 | STEM | SS304/SS316 |
Dimensions and Weights
|
SIZE |
G |
D |
L |
H |
W |
|
1/4” |
8 |
5 |
40 |
24 |
72 |
|
3/8” |
10 |
7 |
45 |
28 |
78 |
|
1/2” |
15 |
9 |
57 |
33 |
97 |
|
3/4” |
20 |
12 |
60 |
40 |
99 |
|
1” |
25 |
15 |
70 |
47 |
110 |
|
1-1/4” |
32 |
20 |
78 |
50 |
118 |
|
1-1/2” |
40 |
25 |
83 |
52 |
143 |
|
2” |
50 |
32 |
99 |
65 |
150 |
|
2-1/2” |
65 |
42 |
125 |
94 |
165 |
|
3” |
80 |
52 |
150 |
105 |
165 |
|
4” |
100 |
65 |
191 |
115 |
185 |
Temperature - Pressure Rating
Other Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 3 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for 1 Piece Ball Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for 1 Piece Ball Valve |
| MOQ | 10 Pc for 1 Piece Ball Valve |
| Nameplate | According to customer for 1 Piece Ball Valve |
| Color | According to customer for 1 Piece Ball Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
