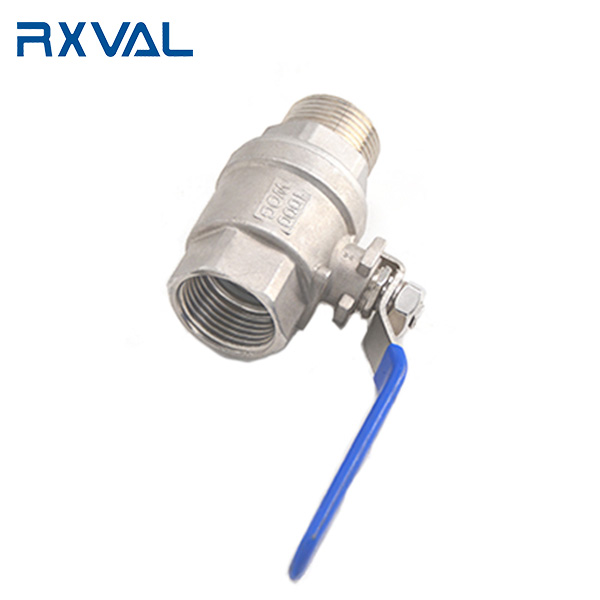

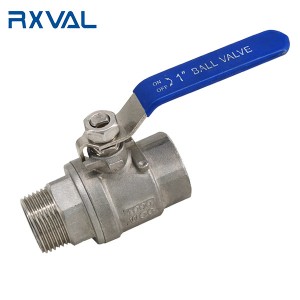

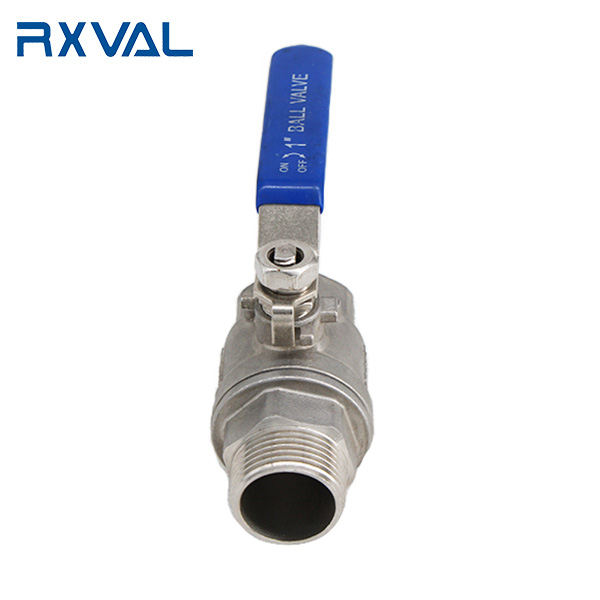

Stainless Steel Ball Valve Female / Male
Features
●Blow-out proof stem
●100% leakage tested
●Floating Ball,Hollow Or Solid Ball
●Anti-Static Spring Device
●Mounting Pad Available
●ISO-5211 mounting pad for actuator (option)
●Female, Male , Female-Male
●Locking device (option)
Standard Material Specification
|
12 |
Seat | PTFE |
|
11 |
Ball | SS 304/ SS316 |
|
10 |
Body | A351 CF8/CF8M |
|
9 |
Gasket | PTFE |
|
8 |
Cap | A351 CF8/CF8M |
|
7 |
Stem | SS 304/ SS316 |
|
6 |
Thrust Washer | PTFE |
|
5 |
Packing | PTFE |
|
4 |
Gland Nut | SS 304 |
|
3 |
Handle | SS 201 |
|
2 |
Spring Washer | SS 304 |
|
1 |
Nut | SS 304 |
|
Parts |
Parts | Material |
Dimensions and Weights
|
SIZE |
G |
D |
L |
H |
W |
|
1/4” |
8 |
10.5 |
55 |
50 |
100 |
|
3/8” |
10 |
12.5 |
55 |
50 |
100 |
|
1/2” |
15 |
15 |
65 |
57 |
125 |
|
3/4” |
20 |
20 |
73 |
64 |
125 |
|
1” |
25 |
25 |
86 |
75 |
165 |
|
1-1/4” |
32 |
32 |
100 |
82 |
165 |
|
1-1/2” |
40 |
38 |
115 |
98 |
200 |
|
2” |
50 |
49 |
134 |
109 |
200 |
Dimensions
|
NPS |
d |
L |
H |
E |
C |
|
1/2” |
15 |
67 |
49 |
91 |
26 |
|
3/4” |
20 |
73 |
53 |
105 |
31 |
|
1” |
25 |
83.5 |
63 |
119 |
40 |
|
1 1/4” |
32 |
100 |
76 |
128 |
49 |
|
1 1/2” |
38 |
108 |
86 |
146 |
57 |
|
2” |
50 |
125 |
95 |
163 |
70 |
Temperature - Pressure Rating
Advantages
1.Made of investment casting for the body
2.Factory supplied with competitive price
3.All the test reports offered before shipment for approved
4.100% testing before shipment and ensure 0 leakage
Other Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 3 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for Stainless Steel Ball Valve Female / Male |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Stainless Steel Ball Valve Female / Male |
| MOQ | 10 Pc for Stainless Steel Ball Valve Female / Male |
| Nameplate | According to customer for Stainless Steel Ball Valve Female / Male |
| Logo | According to customer for Stainless Steel Ball Valve Female / Male |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
