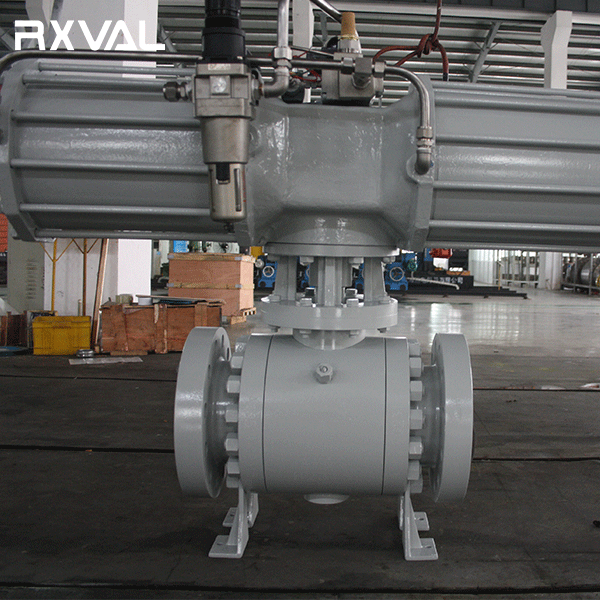

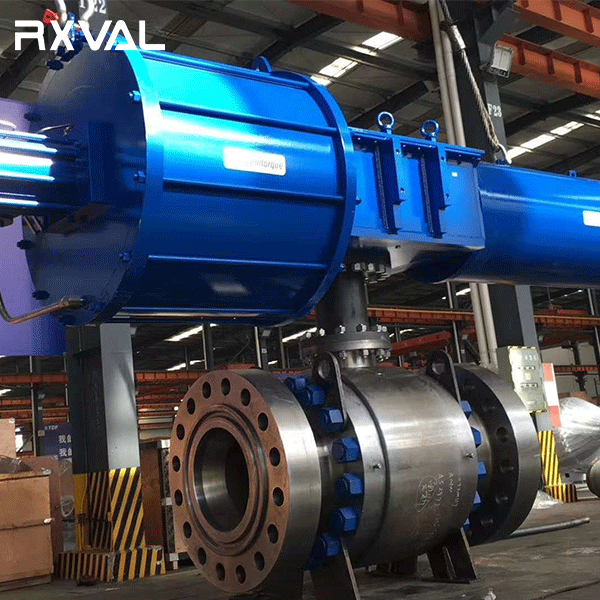

Trunnion Mounted Ball Valve with Pneumatic Actuator
Features
●Three Piece
●Full or Reduce Bore
●High Performance Sealing Mechanism
●Fire Safety Design
●Anti-Static Spring Device
●Blow-out proof stem
●Low Emission Design
●Double Block and Bleed function
●Locking Device for Lever Operation
●Low Operation Torque
●Self-relief of Excessive Cavity Pressure
●Zero Leakage
●Working for high temperature up to 540℃
Material Specification
| No. | Name | Material | No. | Name | Material |
| 1 | Body | A105/F304/LF2 | 18 | Cap | A105/F304/LF2 |
| 2 | Gasket | Graphite+SS | 19 | Grease Valve | A105/F304/LF2 |
| 3 | Drain valve | A105/F304/LF2 | 20 | Bushing | PTFE+CS/PTFE+SS |
| 4 | Bottom Cover | A105/F304/LF2 | 21 | Stem | A182 F6a/F304 |
| 5 | Bolt | A193 B7/B8/L7 | 22 | Bushing | PTFE+CS/PTFE+SS |
| 6 | Gasket | Graphite+SS | 23 | Yoke | A216 WCB |
| 7 | O-Ring | Viton | 24 | Sleeve | ANSI 1025 |
| 8 | Bushing | PTFE+SS | 25 | Bolt | A193 B7 |
| 9 | Ball | A105+ENP/F304 | 26 | O-Ring | Viton |
| 10 | Gasket | Graphite+SS | 27 | O-Ring | Viton |
| 11 | O-Ring | Viton | 28 | Gasket | Graphite+SS |
| 12 | Fire Ring | Graphite | 29 | Bonnet | A105/F304/LF2 |
| 13 | Seat Sealing | PTFE,PEEK,NYLON | 30 | Pin | A182 F6a |
| 14 | Seat | A105+ENP/F304 | 31 | Bolt | A193 B7 |
| 15 | Spring | Inconel 600 | 32 | Gear | / |
| 16 | Bolt | A193 B7/B8/L7 | 33 | Grease Valve | A105/F304/LF2 |
| 17 | Nut | A194 2H/8/7 |
Advantages of Ball Valves
1.They provide leak-proof service,
2.Open and close quickly,
3.Compared to gate valves, they have very small dimensions,
4.Compared to gate valves, they are lighter,
5.The multi designed flexibility does not exist in the Gate or Globe valve, and hence it lowers the amount of valves needed,
6.These valves are manufactured in different sizes and shapes providing flexibility in selection,
7.The high quality valves provide safe service under high temperature and high pressure conditions, and
8.Compared to other valves, they are controlled with less force.
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for Metal Seat Forged Trunnion Mounted Ball Valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Metal Seat Forged Trunnion Mounted Ball Valve |
| MOQ | 1 Pc for Metal Seat Forged Trunnion Mounted Ball Valve |
| Nameplate | According to customer for Metal Seat Forged Trunnion Mounted Ball Valve |
| Color | According to customer for Metal Seat Forged Trunnion Mounted Ball Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
