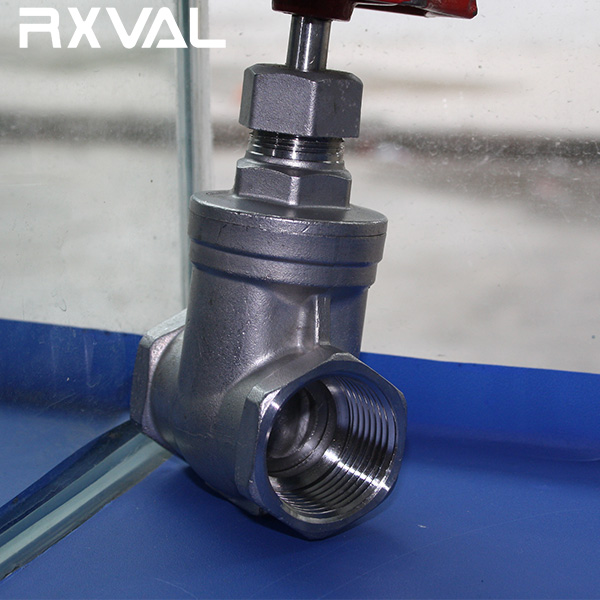

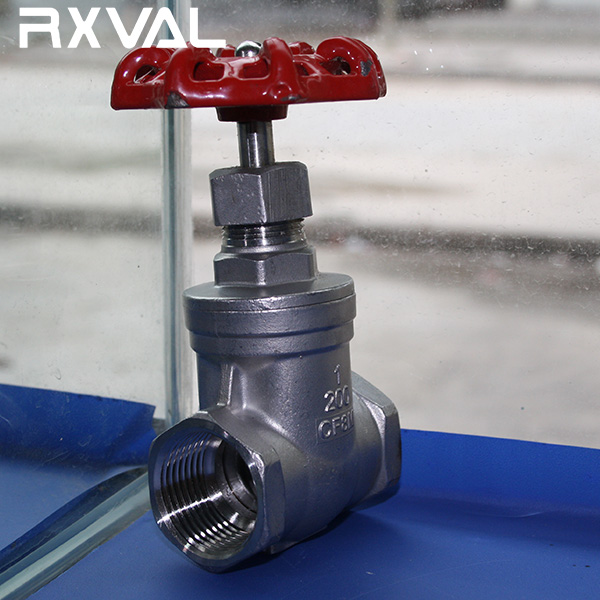

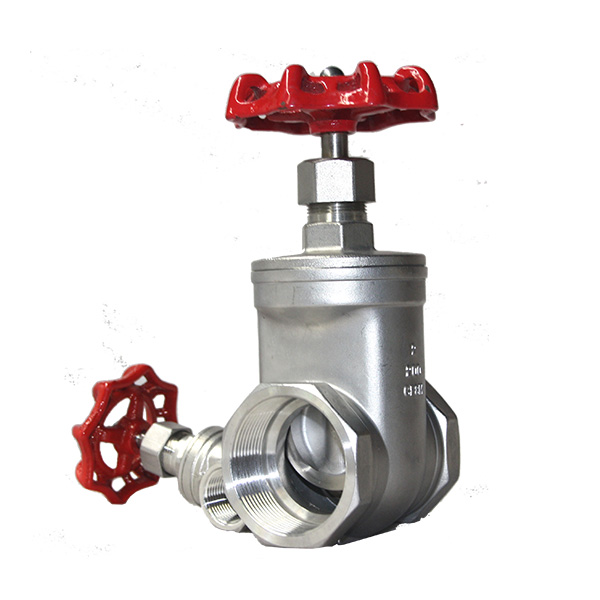

Threaded/Screwed Gate Valve 200WOG
Material Specification
| No. | PART NAME | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | DISC | SS304/SS316 |
| 3 | BONNET | CF8/CF8M |
| 4 | SEAL | PTFE |
| 5 | GLAND | SS 304 |
| 6 | PACKING | PTFE |
| 7 | GLAND RING | SS 301 |
| 8 | PACKING NUT | SS304/SS316 |
| 9 | STEM | SS304/SS316 |
| 10 | WHEEL-HANDLE | ALUMINUM |
| 11 | NAME PLATE | ALUMINUM |
| 12 | NUT | SS304 |
Dimensions and Weights
|
SIZE |
DN |
A |
B |
C |
D |
|
1/2” |
15 |
52 |
92 |
64 |
18 |
|
3/4” |
20 |
57 |
100 |
70 |
24 |
|
1” |
25 |
61 |
112 |
70 |
30 |
|
1-1/4” |
32 |
70 |
122 |
78 |
38 |
|
1-1/2” |
40 |
74 |
136 |
96 |
44 |
|
2” |
50 |
83 |
154 |
107 |
56 |
|
2 1/2” |
65 |
115 |
200 |
127 |
72 |
|
3” |
80 |
118 |
217 |
127 |
85 |
Other Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for gate valve |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Threaded/Screwed Gate Valve |
| MOQ | 10 Pc for Threaded/Screwed Gate Valve |
| Nameplate | According to customer for Threaded/Screwed Gate Valve |
| Color | According to customer for Threaded/Screwed Gate Valve |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
For almost 10 years, RXVAL has continually committed itself to offer the best Threaded/Screwed Gate Valve products to meet a wide range of applications and requirements.
As an valve manufacturer, RXVAL has your perfect Threaded/Screwed Gate Valve solution. Our success in the valves industry is attributed to our customer-centric team of sales personnel, engineers, workers and after-service staff that are collectively committed to providing quality products at a price you would come to expect.
