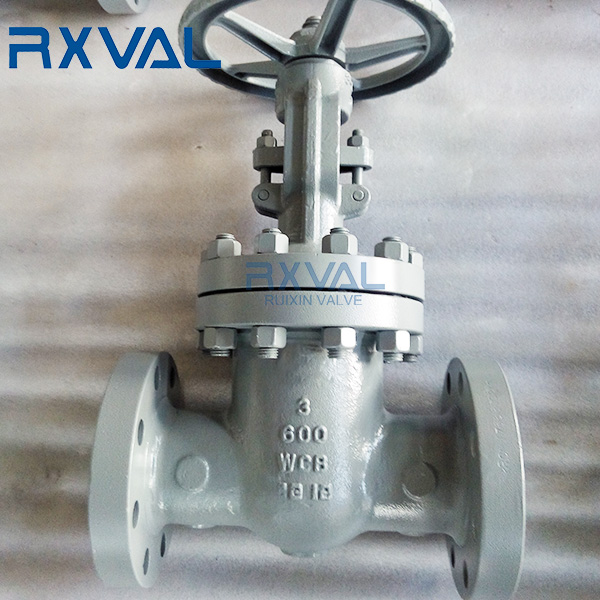

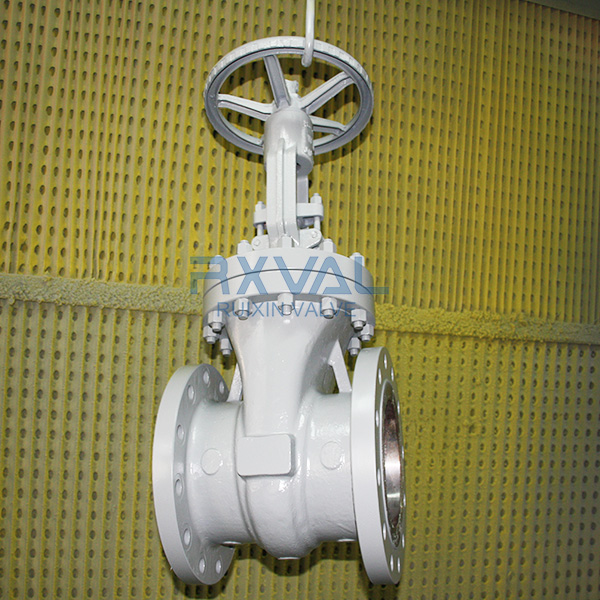

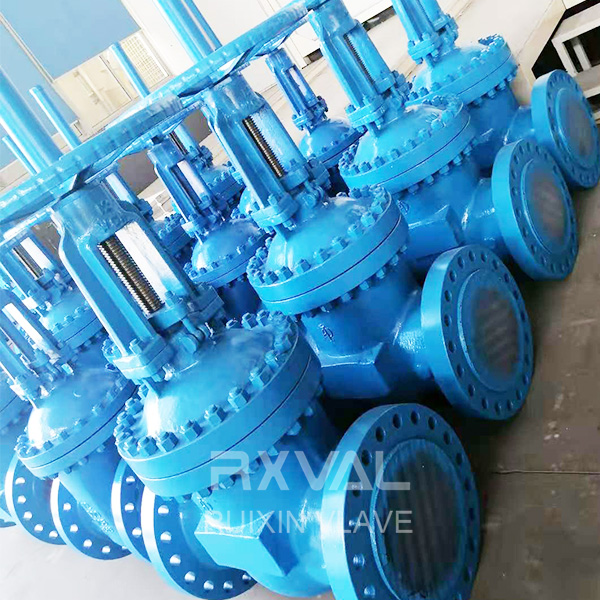

API600 WCB Flange Gate Valve 150LB,300LB,600LB
Features
●TFull Bore
●TRising Stem
●TBolted Bonnet OS&Y, Or Pressure Seal Bonnet
●TFlexible Wedge Or Solid Wedge
●TIntegrated seats
Advantages
1.RXVAL manufactures API cast steel gate valves which are well-constructed, cost-effective and perfect for commercial or industrial applications.
2.RXVAL API cast steel gate valves are suitable for a full range of applications.
Material Specification
|
No. |
Part |
Material |
|
1 |
Body |
ASTM A216 WCB |
|
2 |
Seat |
ASTM A105+13Cr |
|
3 |
Wedge |
ASTM A216 WCB+13Cr |
|
4 |
Stem |
ASTM A182 F6a |
|
5 |
Gasket |
304+Flexible Graphite |
|
6 |
Bonnet Bolt |
ASTM A193 B7 |
|
7 |
Nut |
ASTM A194 2H |
|
8 |
Bonnet |
ASTM A216 WCB |
|
9 |
Back Seat |
ASTM A276 410 |
|
10 |
Packing |
Flexible Graphite |
|
11 |
Gland |
ASTM A276 410 |
|
12 |
Gland Flange |
ASTM A216 WCB |
|
13 |
Pin |
CS |
|
14 |
Eyebolt |
ASTM A193 B7 |
|
15 |
Nut |
ASTM A194 2H |
|
16 |
Stem Nut |
ASTM A536 FCD45 |
|
17 |
Clamp Nut |
ASTM A29 1025 |
|
18 |
Handwheel |
ASTM A47 32510 |
|
19 |
Lock Nut |
ASTM A29 1035 |
|
20 |
Screw |
ASTM A29 1035 |
|
21 |
Lubricating Cap |
Component Part |
|
22 |
Rivet |
SS |
|
23 |
Name Plate |
SS |
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for API cast steel Flange gate valves |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for API cast steel Flange gate valves |
| MOQ | 1 Pc for API cast steel Flange gate valves |
| Nameplate | According to customer for API cast steel Flange gate valves |
| Color | According to customer for API cast steel Flange gate valves |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
Pressure Testing Standard for the gate Valve
|
CL |
150LB |
300LB |
600LB |
800LB |
900LB |
1500LB |
2500LB |
|
Shell (Mpa) |
3.0 |
7.7 |
15.4 |
21.0 |
23.0 |
37.5 |
63.9 |
|
Back Seat (Mpa) |
2.2 |
5.7 |
11.3 |
15.4 |
16.9 |
27.5 |
46.2 |
|
Seat (Mpa) |
2.2 |
5.7 |
11.3 |
15.4 |
16.9 |
27.5 |
46.2 |
|
Air (Mpa) |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
Unlike forging, casting uses the liquid form of metal to create valves. These metals are melted into a molten liquid and poured into various molds. One of the biggest benefits of casting is that it can create valves with complex shapes, patterns, and sizes. Using a mold to manufacture these devices gives you more freedom to make different types valves with more intricate parts.
RXVAL’s OS&Y gate valves are specifically design to industry standards for straight thru, bi-directional flow which results in low flow loss and low pressure drop. They are designed for applications where excellent flow conditions and tight shut-off are necessary. Our gate valves proudly service the oil/gas refining, pulp and paper, power generation and chemical/petrochemical industries worldwide.
We offer both Cast API 600 and Forged API 602 Gate valve designs in a wide range of sizes, pressure classes and materials to fit even the most unique and rugged applications on the planet!
