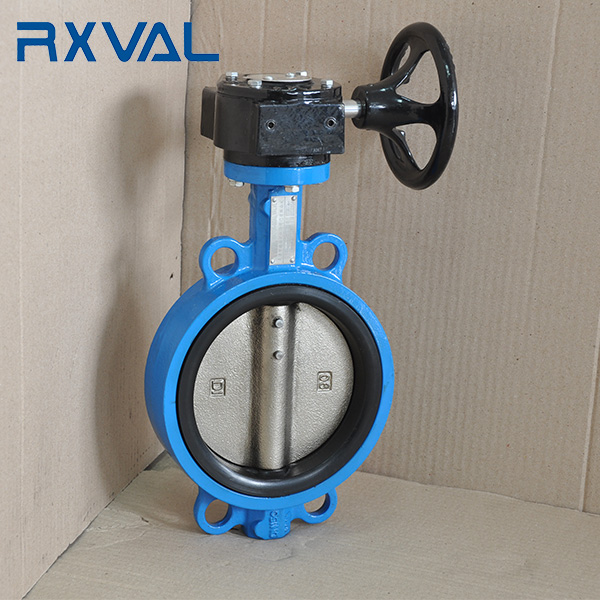

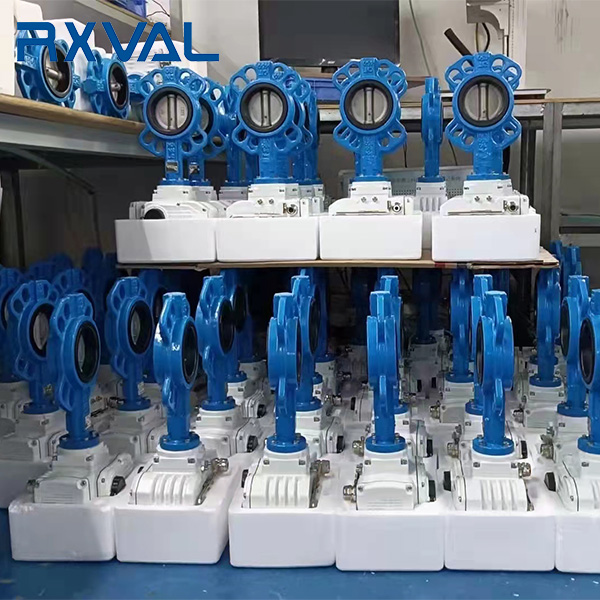

The concentric type is a standard and general use butterfly valves.
The shaft is located in the centre of the disc and pipeline.
The disc outer diameter is bigger than the inner diameter of the valve seat.
This arrangement creates an interference fit whereby part of the disc is in contact or rubs the seat during the opening or closing of the valve. As a result, a bubble-tight shut off is achieved.
The disc is made of metal whereas the seat is a softer material (NBR, EPDM, PTFE, VITON). Soft seat butterfly valves are suitable for low pressure and non-critical applications up to Class 150/PN16.

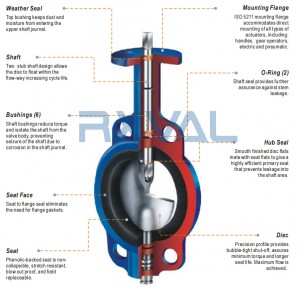

No. |
Part |
Material |
1 |
Body |
Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel |
2 |
Seat |
NBR,EPDM,VITON,PTFE |
3 |
Shaft |
Stainless Steel |
4 |
Disc |
Ductile Iron + Ni, CF8,CF8M,Bronze |
5 |
Pin |
Stainless Steel |
6 |
Bushing |
PTFE,Bronze |
7 |
O-Ring |
NBR,EPDM |
Butterfly valves can be used for a broad range of applications within water supply, wastewater treatment, fire protection and gas supply, in the chemical and oil industries, in fuel handling systems, power generation etc.
Some of the advantages for this type of valve are the simple construction not taking up too much space, and the light weight and lower cost compared to other valve designs.
Payment Term | L/C, T/T, Western Union,Paypal |
Delivery Time | 15 - 30 days after payment |
Seaport | Shanghai Or Ningbo China |
The 3rd Inspection | Available |
Sample | Available for Wafer Concentric Butterfly Valve |
Warranty Period | 18 months after shipments and 12 months after installed |
Valve Test | 100% quantity tested before delivery |
Packing | Plywood Case for Wafer Concentric Butterfly Valve |
MOQ | 1 Pc for Wafer Concentric Butterfly Valve |
Nameplate | According to customer for Wafer Concentric Butterfly Valve |
Color | According to customer for Wafer Concentric Butterfly Valve |
Shipment | By sea,By Air ,By Express,and door to door available |
OEM/ODM Service | Available |
For almost 10 years, RXVAL has continually committed itself to offer the best Wafer Concentric Butterfly Valve products to meet a wide range of applications and requirements.
As an valve manufacturer, RXVAL has your perfect Wafer Concentric Butterfly Valve solution. Our success in the valves industry is attributed to our customer-centric team of sales personnel, engineers, workers and after-service staff that are collectively committed to providing quality products at a price you would come to expect.
