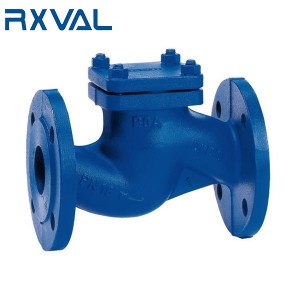

DIN Swing Check Valve with Flanged End

Short Description:

Size	DN 40- DN 600
Pressure	PN 16- PN64
End Connection	Flange (FLG) RF or RTJ. BW
Bore	Full Bore
Body Material	WCB,WCC,LCB,LCC,WC6,WC9,C5,C12,CF8(M),CF3(M),C95800 ETC
Design	DIN 3840
Face to Face	DIN 3202-F6,EN558-1
End Flange	DIN 2543(PN16),DIN 2544(PN25),DIN 2545(PN40),EN1092-1
BW Ends	ANSI B16.25
Checking & Test	DIN 3230,EN12266-1
Temperature	-50°C~650°C (Depend on material )

Send email to us

Product Detail

Product Tags

Features

● Bolted Bonnet
● Swing Disc
● Straight Pattern Body
● Plug Disc and Throttling Disc

NO.	Part Name	Material
1	Body	GS-C25+13Cr
2	Disc	GS-C25+13Cr
3	Pin	Carbon Steel
4	Nut	A194 2H
5	Hinge	GS-C25
6	Pin	A182 F6
7	Gasket	Graphite
8	Bolt	A193 B7
9	Nut	A194 2H
10	Bonnet	GS-C25
11	Hook Screw	Carbon Steel

Dimensions and Weights

PN	DN	40	50	65	80	100	125	150	200	250	300	350	400	500	600
16	L	180	200	240	260	300	350	400	500	600	700	800	900	1100	1300
	H	140	150	168	180	210	230	275	340	355	410	475	552	660	740
	Weight(kg)	14	15	19	28	35	48	66
25	L	180	200	240	260	300	350	400	500	600	700	800	900	1100	1300
	H	140	150	168	180	210	230	275	340	355	410	475	552	660	740
	Weight(kg)	14	15	19	29	38	52	70
40	L	200	230	290	310	350	400	480	600	730	850	980	1100	1250	1450
	H	140	155	172	185	215	235	285	350	360	425	490	565	680	760
	Weight(kg)	14	15	20	32	42	58	80

A basic swing Check valve consists of a valve body, a bonnet, and a disk that is connected to a hinge.
The disk swings away from the valve-seat to allow flow in the forward direction, and returns to valve-seat when upstream flow is stopped, to prevent back-flow.
The disc in a swing type Check valve is unguided as it fully opens or closes.
There are many disk and seat designs available, in order to meet the requirements of different applications.
The valve allows full, unobstructed flow and automatically closes as pressure decreases.
These valves are fully closed when flow reaches zero, in order to prevent back-flow.
Turbulence and pressure drop in the valve are very low.

More Information

Payment Term	L/C, T/T, Western Union,Paypal
Delivery Time	15 - 30 days after payment
Seaport	Shanghai Or Ningbo China
The 3^rd Inspection	Available
Sample	Available for DIN Swing Check Valve
Warranty Period	18 months after shipments and 12 months after installed
Valve Test	100% quantity tested before delivery
Packing	Plywood Case for DIN Swing Check Valve
MOQ	1 Pc for DIN Swing Check Valve
Nameplate	According to customer for DIN Swing Check Valve
Color	According to customer for DIN Swing Check Valve
Shipment	By sea,By Air ,By Express,and door to door available
OEM/ODM Service	Available

Test Pressure to DIN 3230

PN	Shell Test	Back Seat	Seat Test	Gas Test
16	2.4 Mpa	1.76 Mpa	1.76 Mpa	0.6 Mpa
25	3.75 Mpa	2.75 Mpa	2.75 Mpa	0.6 Mpa
40	6.0 Mpa	4.4 Mpa	4.4 Mpa	0.6 Mpa
64	9.6 Mpa	7.1 Mpa	7.1 Mpa	0.6 Mpa
