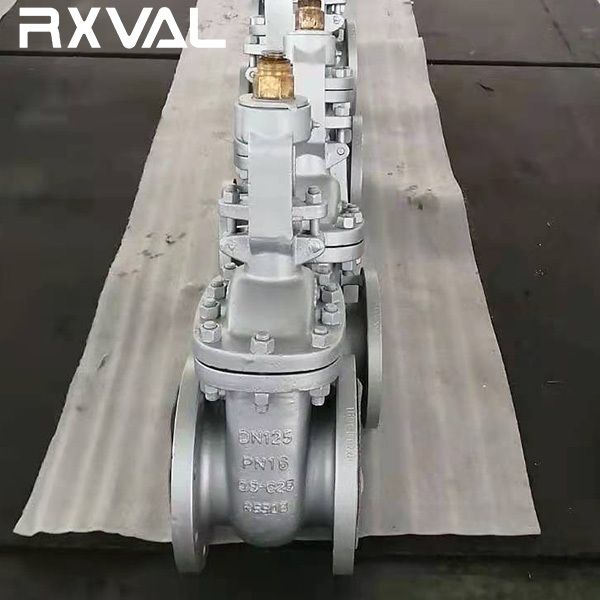

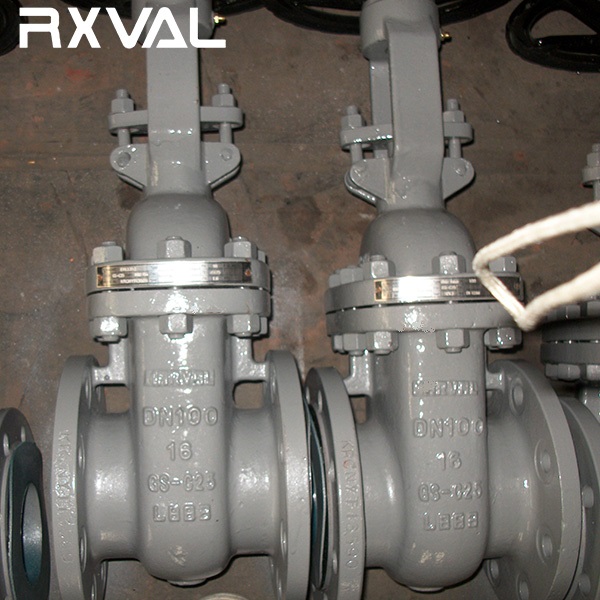

DIN Rising Stem Gate Valve F4
Features
● OS&Y, Rising Stem
● Straight pattern Body
● Bolted Bonnet
● Threaded or Welded Seat Ring
● Renewable seat ring
|

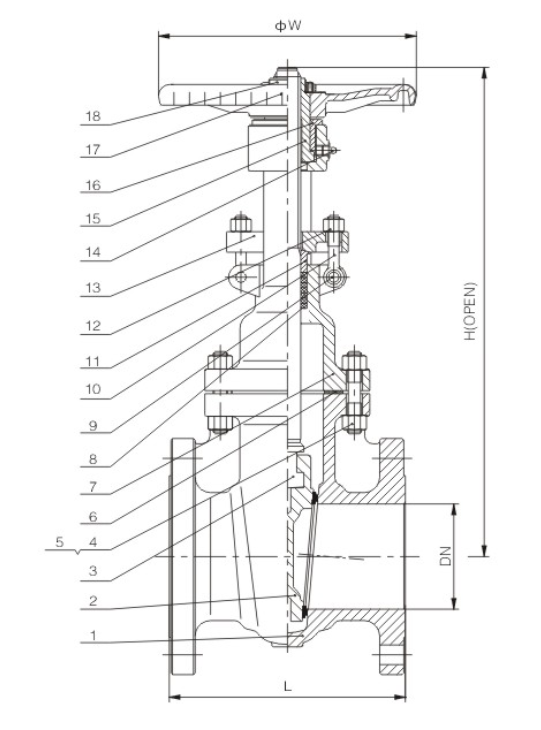

NO. |
Part Name |
Material |
|
1 |
Body |
GS-C25+13Cr |
|
2 |
Disc |
GS-C25+13Cr |
|
3 |
Stem |
A182 F6 |
|
4 |
Nut |
A194 2H |
|
5 |
Bolt |
A193 B7 |
|
6 |
Gasket |
SS+Graphite |
|
7 |
Bonnet |
GS-C25 |
|
8 |
Packing |
Graphite |
|
9 |
Pin |
Carbon Steel |
|
10 |
Gland Eye-Bolt |
A193 B7 |
|
11 |
Gland |
A182 F6 |
|
12 |
Nut |
A194 2H |
|
13 |
Gland Flange |
GS-C25 |
|
14 |
Nipple |
Brass |
|
15 |
Stem Nut |
A439 D2 |
|
16 |
Retaining Nut |
Carbon Steel |
|
17 |
Hand Wheel |
A536 |
|
18 |
Nut |
Carbon Steel |
|
PN4,PN6,PN10,PN16 DIN 3202-F4 |
||||||||||||||||||||
|
DN |
40 |
50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1500 |
|
L |
140 | 150 | 170 | 180 | 190 | 200 | 210 | 230 | 250 | 270 | 290 | 310 | 350 | 390 | 430 | 470 | 510 | 550 | 630 | 790 |
|
H |
395 | 400 | 435 | 515 | 595 | 725 | 780 | 980 | 1150 | 1380 | 1550 | 1745 | 2120 | 2520 | 3050 | 3280 | 3720 | 4200 | 5000 | 6300 |
|
W |
180 | 200 | 220 | 250 | 280 | 300 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 700 | ||||||
Advantage
1.Made of investment casting for the body of DIN Rising Stem Gate Valve F4
2.Factory supplied with competitive price
3.All the test reports offered before shipment for approved
4.100% testing before shipment and ensure 0 leakage for DIN Rising Stem Gate Valve F4
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for DIN Rising Stem Gate Valve F4 |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for DIN Rising Stem Gate Valve F4 |
| MOQ | 1 Pc for DIN Rising Stem Gate Valve F4 |
| Nameplate | According to customer for DIN Rising Stem Gate Valve F4 |
| Color | According to customer for DIN Rising Stem Gate Valve F4 |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
DIN Rising Stem Gate valves are ideal for bidirectional, low-friction flow and 100% shut-off.
Due to the flow characteristics of the wedge-to-seat design, gate valves should be operated in the full-open or full-close position.
Concentrated flow across the seats of a partially opened gate valve risks possible seat damage, therefore throttling is not recommended.
