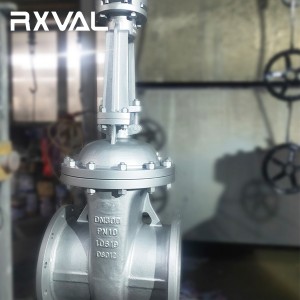

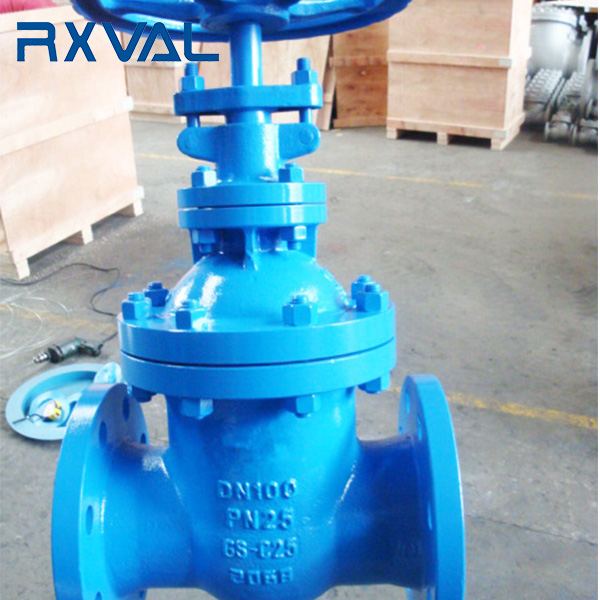

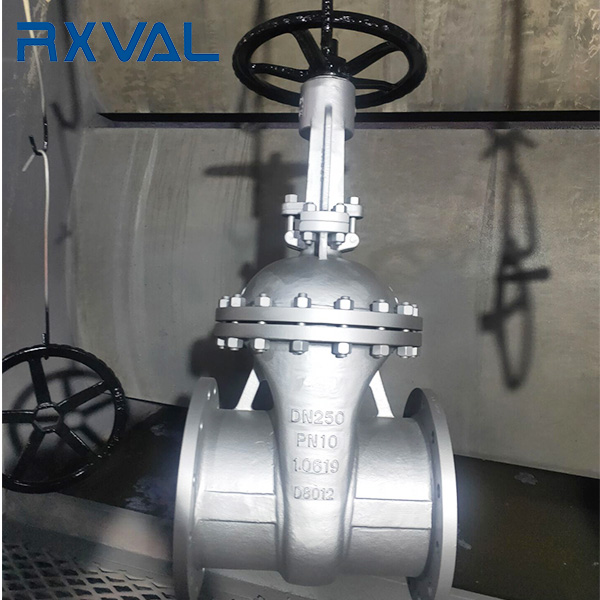

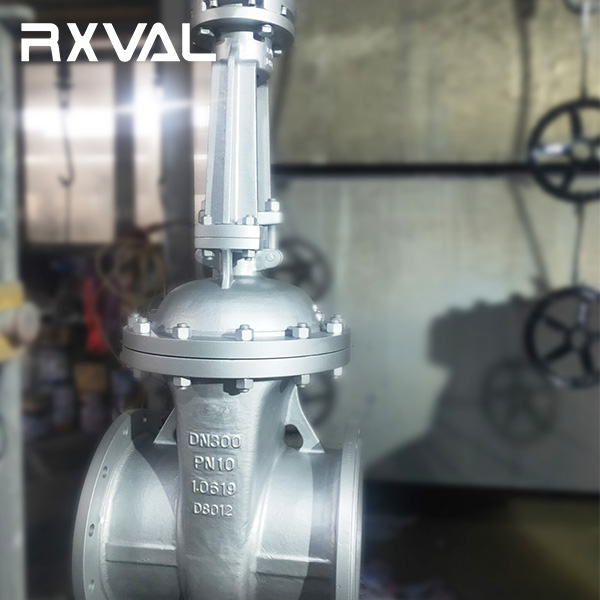

DIN Non-Rising Stem GATE VALVE F5
Features
● OS&Y, Rising Stem
● Straight pattern Body
● Bolted Bonnet
● Threaded or Welded Seat Ring
● Renewable seat ring
|

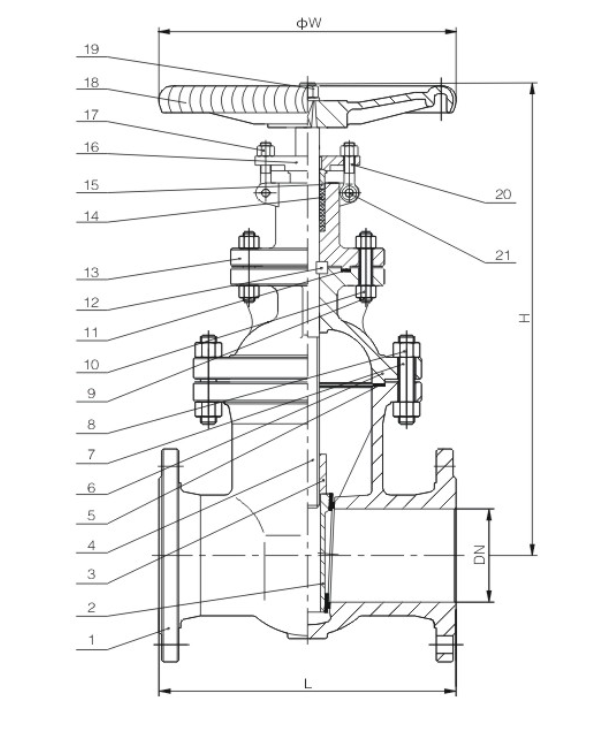

NO. |
Part Name |
Material |
|
1 |
Body |
GS-C25+13Cr |
|
2 |
Wedge |
GS-C25+13Cr |
|
3 |
Stem Nut |
A439 D2 |
|
4 |
Stem |
A182 F6 |
|
5 |
Gasket |
SS+Graphite |
|
6 |
Bonnet |
GS-C25 |
|
7 |
Bolt |
A193 B7 |
|
8 |
Nut |
A194 2H |
|
9 |
Nut |
A194 2H |
|
10 |
Bolt |
A193 B7 |
|
11 |
Gasket |
SS+Graphite |
|
12 |
Split Ring |
A182 F6 |
|
13 |
Bonnet |
GS-C25 |
|
14 |
Packing |
Graphite |
|
15 |
Gland |
A182 F6 |
|
16 |
Gland Flange |
GS-C25 |
|
17 |
Nut |
A194 2H |
|
18 |
Handwheel |
Carbon Steel |
|
19 |
Nut |
A194 2H |
|
20 |
Gland Eye Bolt |
A193 B7 |
|
18 |
Pin |
1035 |
|
PN 16,PN25 DIN GATE VALVE F5 |
||||||||||||
|
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
L |
250 |
270 |
280 |
300 |
325 |
350 |
400 |
450 |
500 |
550 |
600 |
|
|
H |
330 |
369 |
413 |
448 |
497 |
555 |
723 |
845 |
920 |
1065 |
1205 |
|
|
W |
200 |
200 |
250 |
300 |
300 |
350 |
350 |
400 |
450 |
500 |
550 |
|
| Weight (KG) |
PN16 |
23 |
30 |
41 |
52 |
83 |
102 |
155 |
248 |
385 |
473 |
598 |
|
PN25 |
23 |
30 |
42 |
55 |
85 |
110 |
205 |
282 |
390 |
485 |
626 |
|
Test Pressure to DIN 3230
|
PN |
Shell Test |
Back Seat |
Seat Test |
Gas Test |
|
16 |
2.4 Mpa |
1.76 Mpa |
1.76 Mpa |
0.6 Mpa |
|
25 |
3.75 Mpa |
2.75 Mpa |
2.75 Mpa |
0.6 Mpa |
|
40 |
6.0 Mpa |
4.4 Mpa |
4.4 Mpa |
0.6 Mpa |
|
64 |
9.6 Mpa |
7.1 Mpa |
7.1 Mpa |
0.6 Mpa |
Advantage
1.Made of investment casting for the body of DIN Non-Rising Stem Gate Valve F5
2.Factory supplied with competitive price
3.All the test reports offered before shipment for approved
4.100% testing before shipment and ensure 0 leakage for DIN Non-Rising Stem Gate Valve F5
Test Pressure to DIN 3230
|
PN |
Shell Test |
Back Seat |
Seat Test |
Gas Test |
|
16 |
2.4 Mpa |
1.76 Mpa |
1.76 Mpa |
0.6 Mpa |
|
25 |
3.75 Mpa |
2.75 Mpa |
2.75 Mpa |
0.6 Mpa |
|
40 |
6.0 Mpa |
4.4 Mpa |
4.4 Mpa |
0.6 Mpa |
|
64 |
9.6 Mpa |
7.1 Mpa |
7.1 Mpa |
0.6 Mpa |
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for DIN Non-Rising Stem Gate Valve F5 |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for DIN Non-Rising Stem Gate Valve F5 |
| MOQ | 1 Pc for DIN Non-Rising Stem Gate Valve F5 |
| Nameplate | According to customer for DIN Non-Rising Stem Gate Valve F5 |
| Color | According to customer for DIN Non-Rising Stem Gate Valve F5 |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
