China wholesale 316 Stainless Steel Ball Valve Manufacturers – 3-PC ISO 5211 Mountain Pad Ball Valve 1000 WOG – Ruixin Valve
China wholesale 316 Stainless Steel Ball Valve Manufacturers – 3-PC ISO 5211 Mountain Pad Ball Valve 1000 WOG – Ruixin Valve Detail:
Standard Material Specification
Dimensions and Weights (Unit:mm)
|
SIZE |
DN(mm) |
d |
d1 |
d2 |
S |
D |
D1 |
L |
H |
W |
|
1/4” |
8 |
10.5 |
11.6 |
11.6 |
14.3 |
22.6 |
17 |
50 |
55 |
98 |
|
3/8” |
10 |
12 |
12.7 |
12.7 |
17.8 |
22.6 |
17 |
60 |
55 |
98 |
|
1/2” |
15 |
15 |
15 |
16 |
22.2 |
27.3 |
21.3 |
70 |
56 |
100 |
|
3/4” |
20 |
20 |
20 |
20 |
27.7 |
33.1 |
26.7 |
80 |
62 |
115 |
|
1” |
25 |
25 |
25 |
25 |
34.5 |
39.8 |
33.6 |
88 |
77 |
125 |
|
1-1/4” |
32 |
32 |
32 |
33.8 |
43.2 |
48.6 |
42.4 |
100 |
82 |
140 |
|
1-1/2” |
40 |
38 |
38 |
39.5 |
49.1 |
55.1 |
48 |
110 |
95 |
160 |
|
2” |
50 |
50 |
50 |
50.8 |
61.1 |
68.1 |
60.5 |
135 |
100 |
165 |
|
2-1/2” |
65 |
65 |
65 |
62.7 |
77.1 |
85.9 |
76.1 |
180 |
120 |
215 |
|
3” |
80 |
80 |
80 |
77.9 |
90.0 |
100.8 |
88.9 |
190 |
125 |
220 |
|
4” |
100 |
100 |
100 |
100 |
115.5 |
127.5 |
114.2 |
235 |
150 |
250 |
Advantage
1.Made of investment casting for the body of 3-PC ISO 5211 Pad Ball Valve
2.Factory supplied with competitive price
3.All the test reports offered before shipment for approved
4.100% testing before shipment and ensure 0 leakage for 3-PC ISO 5211 Pad Ball Valve
Technical Drawing for 2000PSI 3PC Ball Valve

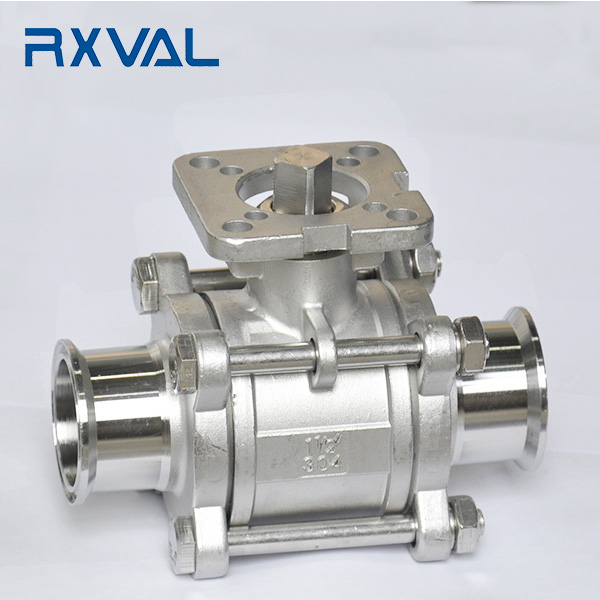

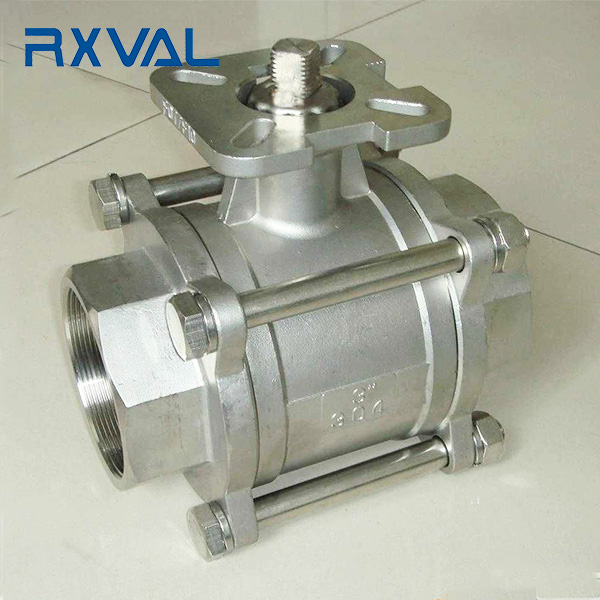

Product detail pictures:
Related Product Guide:
We're commitment to offer you the aggressive cost ,superb products and solutions top quality, too as fast delivery for China wholesale 316 Stainless Steel Ball Valve Manufacturers – 3-PC ISO 5211 Mountain Pad Ball Valve 1000 WOG – Ruixin Valve , The product will supply to all over the world, such as: Hungary, Spain, Juventus, Our products are exported worldwide. Our customers are always satisfied with our reliable quality, customer-oriented services and competitive prices. Our mission is "to continue to earn your loyalty by dedicating our efforts to the constant improvement of our products and services in order to ensure the satisfaction of our end-users, customers, employees, suppliers and the worldwide communities in which we cooperate".
By Abigail from Seychelles - 2017.01.28 18:53
Good quality, reasonable prices, rich variety and perfect after-sales service, it's nice!
By Mario from Malaysia - 2017.07.07 13:00
